Type L / LL Embedded Fin Tube Machine , Wrap On Fin Tube Machine

Place of Origin China
Brand Name RELIANCE
Certification CE,ISO...
Model Number Reliance-1518
Minimum Order Quantity N/A
Price N/A
Packaging Details Solid fumigated plywooden box(export packing)
Delivery Time Ex-work within 2 months after order.
Payment Terms T/T, L/C
Supply Ability 3 sets each 2 months

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Tension Wound Fin Tubes Fining Machine Products Fin Tubes Type L /LL
Process Tension Wound Tube Material Carbon Steel, Stainless Steel, Copper Ect...
Fin Material Aluminum , Copper, Steel Tube OD 12mm Min.
Tube Length No Limit Fin Height 16mm (Max.)
Fin Thickness 0.3mm / 0.4mm / 0.5mm Fin Pitch 2mm (Min.)
Voltage 415V,50HZ (as Per Client's Requirement) Package Plywood Box (export Packing)
Speed 1.2 Meters Per Mintue Training Seller's Site OPERATION Training
Control System PLC
High Light

tube finning machine

,

finned tube machine

Leave a Message
Product Description



Fin tube machine type L/LL, Wrap-on Fin Tube Machine



Quick Details



1. Machine characters

     1.1 Name       :  Wrap-on Fin Tube Machine

     1.2 Mode No. :  RELIANCE-1518

     1.3 Fin type    :  Tyoe L/LL



Tube Material : Seamless steel tubes (Carbon Steel,Stainless Steel,Alloy steel)

                         Welded steel tubes(Carbon Steel A214 ,Stainless Steel TP304/304L,TP316/TP316L)

                         Copper/Brass/Brone etc... No limit



Fin material    :  Alu.1060/1100/1050 , Copper  , Steel



2. Details of items

    Brand New L/LL Fin Tube Machine consists of,

     2.1. Finning head (Without input and output feeding racks

     2.2  Operating control box

     2.3. One set of fining spare parts installed into machine

     2.4. Drawings of input and output feeding racks

     2.5. Service after sales

           (a) Technical support

           (b) Operation training at Reliance's Plant or both

           (c)  Information on maximun production criteria

           (d)  Reference charts

           (e) Specifications for tube and fin strips.



3. Machine production capacities.



Dimensions Data are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.

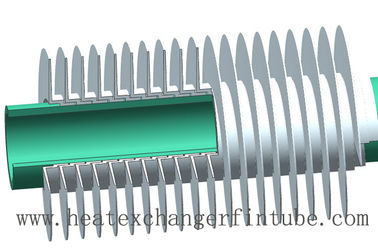

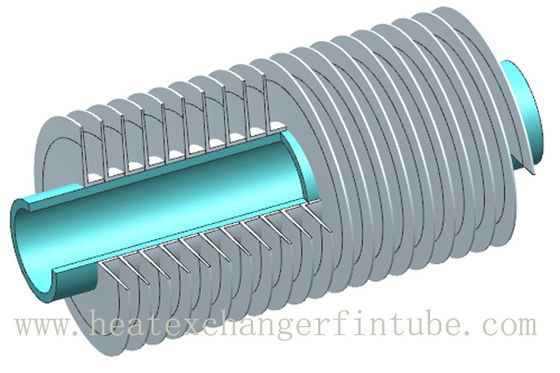

4. Type L and Type LL fin tubes





Type L / LL Embedded Fin Tube Machine , Wrap On Fin Tube Machine 0

Type L / LL Embedded Fin Tube Machine , Wrap On Fin Tube Machine 1

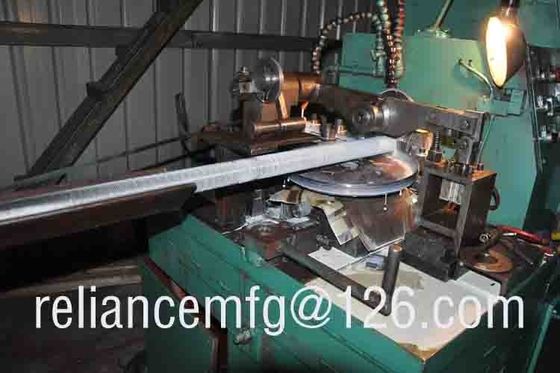

5. Our type L/LL fin tube machine can produce G fin tubes as well.

Type L / LL Embedded Fin Tube Machine , Wrap On Fin Tube Machine 2
