SA213-TP304H NPS 2'' X SCH80S helical Welded Fin Tubes for boiler / cooler

Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number HFW
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Waterproof steel frame bundle package; (2)Steel frame case sealed by plywoods with each end capped.
Delivery Time Ex-work with 1 month on receipt of order.
Payment Terms T/T, L/C
Supply Ability Daily capacity around 40 Tons

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Compamy Type Manufacturer, Imported & Exporter Fin Tube Type High Frequency Welded Fin Tubes Or HF Welding Fin Tube
Fins Type Solid & Serrated Origin China
Nearest Port Shanghai Port, China Recent Buyer From Japan In Dec Of 2015
High Light

helical fin tube

,

helical finned tube

Leave a Message
Product Description

SA213-TP304H , NPS 2'' X SCH80S, continuous helical welded heat exchanger fin pipe

Quick Detail:

High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.


General HF welding production capacity

General specifications of HF welding fin tubes

Welding Facility: 4 finning machines;
Daily production capacity up to 40 tons;
HFW Fin type: solid plain and serrated.

Tube OD: 19mm min.
Tube Length: 18 meters max.
Fin Height: 32 mm max.
Fin Thickness: 0.8mm min
Fin Pitch: min. 4 mm for solid fins and 3.3mm for serrated fins.


Description:

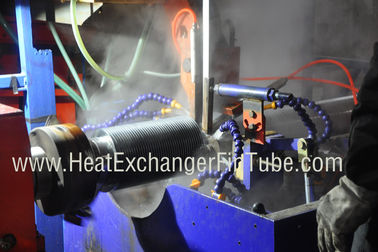

General Manufacturing Process: The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using high frequency resistance welding technique.
We produce both solid plain and serrated helical welded steel finned tube. And also, all spiral welding tubes could be bent in the middle or at the end of fin tubes, we call it Hairpin tubes.


Basis parameters for helical welded fin tubes:

  1. High frequency welding machine output power supply: 200KW or 300KW
  2. The High Frequency Resistance Welded Spiral Fin Tube quality is assured by hydrostatic or pneumatic tests and tensile tests in order to verify the mechanical bonding between bare tube and fin materials.
  3. Acceptance criteria: INTERNATIONAL STANDARD FOR DIMENSIONS, TOLERANCES, AND TESTS OF HIGH FREQUENCY RESISTANCE WELDED FINS or the delivery conditions (TDC) of clients.
  4. Visual check: un-welded parts of fin, fin damage after fining, copper pollution, tears, wrap etc…
  5. Dimensional check: fin height, fin spacing, fin inclination, fin corrugation, length of finned & un-finned portion etc…
  6. Bending check: ovality, thickness and area reduction.
  7. Coating: outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form.
  8. Fin end finish: Bevel(30~35degeree)
  9. Delivery condition: Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of helical welded tubes. The desiccants are put into the each package for continental transportation as well.
  10. Documentation shall include QAP, WPS, PQR& WPQ, raw materials mill certificates, inspection and test samples results and warranty certificate of manufacturer.


Applications:

The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….


Specifications:

A wide range of fin and tube materials could be combinations are available.


ItemsGeneral MaterialsPopular Materials
Core Tube Material

Carbon Steel , Alloy Steel, Heat Resistant Steel,Stainless Steel etc.

1. Carbon Steel: A179/A192/SA210/P235GH etc..
2. Stainless Steel: TP304/304L,
TP316/TP316L, A789 S31803/S2205 etc...
3. Alloy Steel: T11/T13



Fins Material

 Carbon Steel , Alloy Steel, Heat Resistant Steel,Stainless Steel etc.

1.Carbon Steel: Spcc
2. Stainless Steel:
3.




Helical steel fin tubes fabrication Range

Solid fins(mm)

Serrated fins

Min

Max

Min

Max

Tube OD(mm)

19

219

19

219

Fin Height(mm)

8

26

8

32

Fin Thickness(mm)

0.8

2.8

1

1.6

Fins Density(mm)

4(250FPM)

20

3.3(303FPM)

20

Tube length

N/A

18000

N/A

18000

Additional supply range :
(1) Tube swaging process for joint of 2 tubes.
(2) Spacer rings (material: steel) are available.
(3) One side is solid plain fins and the other is serrated fins, 2 fin types on same tube.



Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 4 ERW high Frequency welding fining lines, daily capacity around 40 Tons;Our quality assurance plan for High Frequency Welding Spiral Steel Tubes.
  2. Our quality assurance plan for High Frequency Welding Spiral Steel Tubes.   (2.1) Raw material control for both plain tubes and fins. (2.2) In process control with reports,as WPS, PQR&WPQ; weld deposition efficiency test before fabrication, Non-destructive test and tensile test etc. (2.3) Final inspection control with reports (Visual and dimensional check etc…).
  3. The High Frequency Resistance Welded Fin Tube is integrally extended for the max surface area to achieve efficiency. The heat transfer ratio of high frequency welding fin tube is about 8~9 times higher than other plain tubes.
  4. This Welded Helical Fin Tubes is a singular integral unit, eliminating heat contact resistance and losses. Generally tube side temperature up to 800 degree for stainess steel fins; Low carbon steels, withstanding up to 475 degree is the most common choice.
