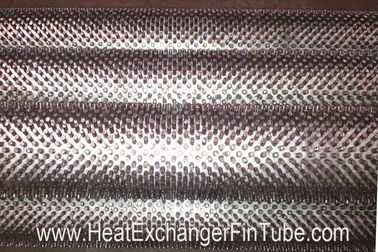

A213 T5 / T9 / T11 / T12 SMLS alloy steel studdes pipe for oil refinery

A213 T5 / T9 / T11 / T12  SMLS alloy steel  studdes pipe for oil refinery
A213 T5 / T9 / T11 / T12  SMLS alloy steel  studdes pipe for oil refinery

Large Image :  A213 T5 / T9 / T11 / T12 SMLS alloy steel studdes pipe for oil refinery

Product Details:

Place of Origin: China.Imported materials are available
Brand Name: Reliance
Certification: CE,ISO...
Model Number: Studs

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Price: N/A
Packaging Details: (1) Waterproof steel frame bundle with each end capped; (2) Steel frame case sealed by plywoods with each end capped.
Delivery Time: Ex-work with 5 week on receipt of order.
Payment Terms: T/T, L/C
Supply Ability: Daily capacity up to 80,000 Studs
Detailed Product Description
Compamy Type: Manufacturer, Importer & Exporter Fin Tube Type: Studded Tubes/Stud Welding Tube
Fins Type: Round,Oval,Pin Origin: China
Nearest Port: Shanghai Port, China Recent Buyer: From Korea In Oct In 2014
High Light:

Studded Tubes

,

Studded pipe

A213 T5 / T9 / T11 / T12  SMLS alloy steel , NPS 3''(88.9mm) studded tubes for oil refinery​



ASTM A213 / A213M :

Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes



Executive Standard

ASTM A213/A213M

Materials Grade

T2, T5, T5b, T5c, T9, T11, T12, T17, T21, T22, T23, T24, T36, T91, T92, T122, T911



Material Grade and Chemical Composition(%):

Grade

C

Mn

P≤

S≤

Si

Cr

Mo

V≥

T11

0.05-0.15

0.30-0.60

0.025

0.025

0.50-1.00

0.50-1.00

1.00-1.50



T12

0.05-0.15

0.30-0.61

0.025

0.025

≤0.50

0.80-1.25

0.44-0.65



T13

0.05-0.15

0.30-0.60

0.025

0.025

≤0.50

1.90-2.60

0.87-1.13



T2

0.10-0.20

0.30-0.61

0.025

0.025

0.10-0.30

0.50-0.81

0.44-0.65



T5

≤0.15

0.30-0.60

0.025

0.025

≤0.50

4.00-6.00

0.45-0.65



T5b

≤0.15

0.30-0.60

0.025

0.025

1.00-2.00

4.00-6.00

0.45-0.65



T5c

≤0.12

0.30-0.60

0.025

0.025

≤0.50

4.00-6.00

0.45-0.65



T9

≤0.15

0.30-0.60

0.025

0.025

0.25-1.00

8.00-10.00

0.9-1.0



T22

0.05-0.15

0.30-0.60

0.025

0.025

≤0.50

1.90-2.60

0.87-1.13



T91

0.08-0.12

0.30-0.60

0.020

0.010

≤0.50

8-9.50

0.85-1.05

0.18-0.25

T92

0.07-0.13

0.30-0.60

0.020

0.010

≤0.50

8-9.50

0.3-0.60

0.15-0.25

T21

0.05-0.15

0.30-0.60

0.025

0.025

≤0.50

2.65-3.35

0.80-1.06







General Studded Tubes production capacity

General specifications of Studded Tubes tubes

Production facility: 3 finning machines;

Daily capacity up to 80,000 studs;

Tube OD: 219 mm max.

Tube Thickness: 4mm~15mm

Tube Length: 16 meters max.

Studs OD: OD6mm~OD16mm

Studs Height: 10mm Min.





Manufacturing process:

Studs are fully automatically welded onto the tube by resistance welding.



Acceptance criteria

Approved drawings and the delivery conditions (TDC) of clients.



Delivery condition

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of extruded bimetallic fin tube.



Surface Protection:

Oil dip, black coating or varnish.



Type of Studs

Cylindrical or elliptical



Documentation

It shall include raw materials mill certificates, inspection and test samples results and warranty certificate of manufacturer.



Applications:

  1. Furnace
  2. Chemical
  3. Petrochemical industry
  4. Power station etc.



Specifications:



Items General Materials Popular ASTM /ASME Materials
Core Tube Material

 Carbon Steel

 Alloy Steel

 Heat  Resistant Steel,

 Stainless Steel

1. Carbon Steel: A106 Gr. B

2. Stainless Steel: TP304/304L,TP316/TP316L, TP347

3. Alloy Steel: P5,T5,P9,T9,T11,T22

Studs

Material

 Carbon Steel

 Stainless Steel

1. Carbon Steel

2. Stainless Steel:

     TP409/410,TP304/304L,TP316/TP316L, TP321/TP321L



Dimensions Data Sheet We're Supplying.

  General Descriptions of Studded tubes

Popular Specifications we make

Tube OD(mm)

OD38mm~OD219mm

Tube Wall Thickness(mm)

4mm~15mm

Tube Length(mm)

16,000mm Max.

Studs OD(mm)

OD6mm~OD16mm

Studs Height(mm)

10mm~45mm

Please email us for more information as your request.





Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 3 finning machines, daily extrusion capacity up to 80,000 studs.
  2. Shanghai Port is our nearest seaport and airport, less than 2 hours’ drive away from our workshop, convenient transportation.
  3. Due to their high rigidity, studded tubes can be used even under extreme temperature and pressure conditions.
