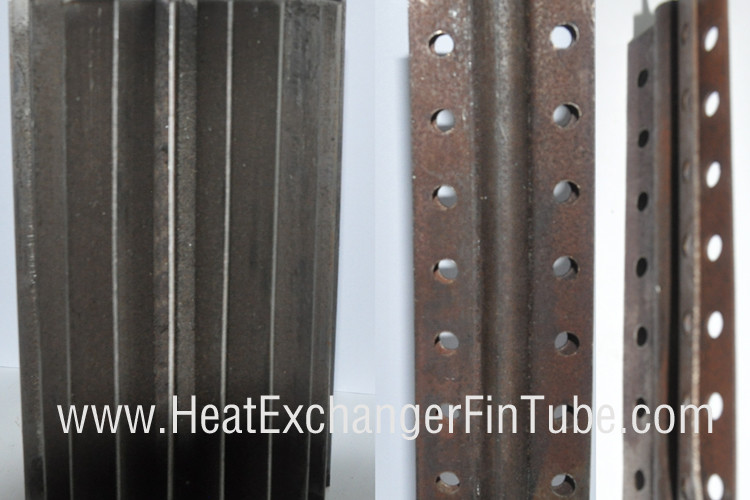

Welded Perforated Longitudinal Finned Tubes of TP304 / TP304L Stainless Steel

Place of Origin China
Brand Name Reliance
Certification CE,ISO...
Model Number Longitudinal Tube
Minimum Order Quantity N/A
Price N/A
Packaging Details Steel frame case sealed by plywood with each tube end capped.
Delivery Time Ex-work within 7 weeks on receipt of order.
Payment Terms T/T, L/C
Supply Ability Daily production capacity up to 500 Meters.

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Company Tube Manufacturer,Importer & Exporter Fin Tube Types Longitudinal Tube
Fins Type Plain Strips,U Shaped Strips,Twist Origin China
Nearest Port Shanghai Port Recent Buyer Form Indonesia In Sep. 2014
High Light

Longitudinal Fin Tubes

,

Longitudinal Finned pipe

Leave a Message
Product Description

Welded Perforated Longitudinal Fins Tube , TP304 / TP304L Stainless Steel Tube



ASTM A213 / A213M :Seamless Ferritic & Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

ASTM A312/ A312M : Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

ASTM A269/ A269M :Seamless and Welded Austenitic Stainless Steel Tubing for General Service



Quick Detail



General Longitudinal Fin Tube Production Capacity

General Specifications of Longitudinal Fin Tube

Welding Facility: 1 finning machine;

Daily production capacity up to 500 Meters;

 Fin type: U fins,perforated,twist...

Tube OD: 19mm min.

Tube Length: 18 meters max.

Fin number: 2/ 4/ 8/ 16/ 18/ 32/ 36 piece per row

Number of fins: 16/20/24/32/40





Description:

Manufacturing process: The longitudinal I/L or U shape fins are welded onto the core plain tubes by resistance welding or welding with filler matal (Spot welded).

  1. U bends tubes with longitudinal fins and fintube coils are avaiable for requesting.

  2. Longitudinal fins types: one-piece shape, standard U bent shape, cut & twist, perforated type etc…

  3. The fin channels are welded to the tubes in opposite pairs. Fin height, number of fins and fin thickness can be specified.

  4. Fins can be applied to either OD tube or NB pipe.



Applications:

The longitudinal finned tubes are wildely used in following fields.

1.    Chemical- ,petrochemical-,oil-, and power indudtry

2.    Heat exchanges

3.    Fired heaters

4.    Gas coolers and heaters

5.    Tank heaters.



Specifications:

Materials of tubes: Carbon Steel(A106/A179/A192/A210)

                                  Stainless Steel(TP304/TP304L ,TP316/TP316L)

                                  Alloy Steel (T11/T22)

Fins Materials: Carbon Steel,

              Stainless Steel(TP304/TP304L,TP316/TP316L, TP409/TP410)

Bare tube size: OD 19.05mm-OD60mm

Fin number: 2/ 4/ 8/ 16/ 18/ 32/ 36 piece per row

Number of fins: 16/20/24/32/40



Competitive Advantage:

1.    Longer working life than others ordinary welding helical fin tubes.

2.    Much safer and energy saving.

3.    Increase the heat transfer rates for viscous liquids.

4.    Perforated fin type used whenever drainage of liquid from fin channels become a problem.

5.    Longitudinal fin tubes are widely used in horizontal heat exchangers.
