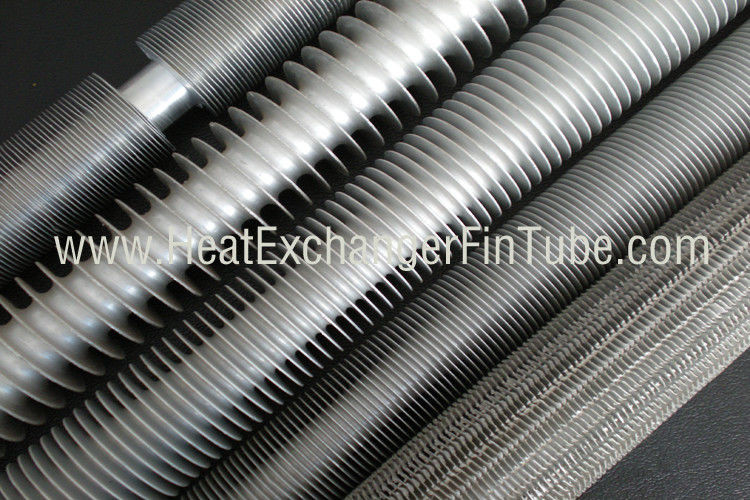

Extruded OD 1'' Aluminum Finned Tubes With 10 FPI Fin Densities Segment Fins

Extruded OD 1'' Aluminum Finned Tubes With 10 FPI Fin Densities Segment Fins
Extruded OD 1'' Aluminum Finned Tubes With 10 FPI Fin Densities Segment Fins Extruded OD 1'' Aluminum Finned Tubes With 10 FPI Fin Densities Segment Fins Extruded OD 1'' Aluminum Finned Tubes With 10 FPI Fin Densities Segment Fins

Large Image :  Extruded OD 1'' Aluminum Finned Tubes With 10 FPI Fin Densities Segment Fins

Product Details:

Place of Origin: China.Imported materials are available.
Brand Name: Reliance
Certification: CE,ISO...
Model Number: DR

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Price: N/A
Packaging Details: (1) Steel frame case sealed by plywoods with each end capped. (2) Solid fumigated wooden box with each end capped.
Delivery Time: Ex-work within 1 month on receipt of order.
Payment Terms: T/T, L/C
Supply Ability: Daily capacity up to 3,000 Meters.
Detailed Product Description
Fin Tube Type: Extrusion Fin Tube Fins Type: Solid & Serrated
Tube Material: Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc... Fin Material: Aluminum
Tube Length: No Limit Fin Density: 13FPI Min
High Light:

Extruded Finned Tube

,

Finned Tubular

extruded OD 1'' aluminum finned tubes with 10FPI fin densities segment fins​


Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.
Fins Type:

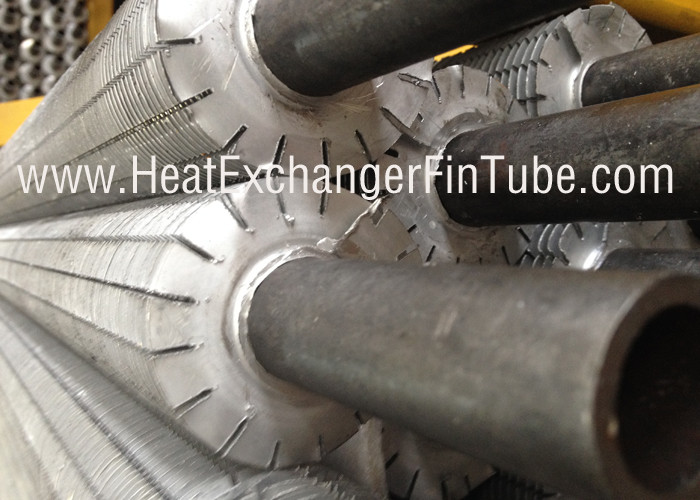

The fins are solid plain or serrated into 12,16 or 24 segments or as your design.
Detail:


General extrusion production capacityGeneral specifications of Extruded Fin Tubes

Extrusion Facility: 14 finning machines.
Daily capacity up to 15,000 meters.
Extruded fins type: solid and serrated.


Tube OD: 50.8mm(2'') max.
Tube Length: no limit.
Fin Height: 16 mm max.
Fin Thickness: generally 0.4mm
Fin Pitch: 1.5mm min.


Unfinned Section

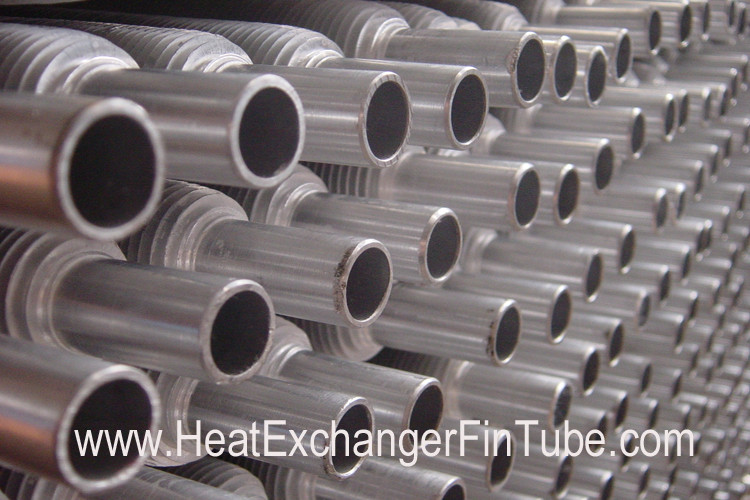

Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.

Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.

Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).

Applications:

The common application fileds are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;


Specifications:

Extruded Bimetallic Finned Tube is combined with two different materials.


 ItemsGeneral MaterialsPopular ASTM Materials
Core Tube Material

Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc.
(Core tube with extremely thin wall materials can be applied.)

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
                              A789 S31803/S2205 etc...
3. Copper:UNS12200/UNS14200/UNS70600,
                 CuNi70/30,CuNi 90/10
4. Titanium: B338 Gr 2

Fins Material

1. Aluminum
2. Copper.

1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper.




All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

1

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 1/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10,

1 1/2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

Please email us for more information.



Advantages

  • One-stop manufacturer shop from core tube supply to fin tube machines
  • ISO 9001:2008 certified company
  • Experienced and dedicated management and qualfied manpower
  • Quickest response, competitive price, highese quality and shortest schedule
  • Tube stock availability for general grades of carbon steel and stainless steel
  • Technical support services for fin tube machines and replacement accessories

Extruded OD 1'' Aluminum Finned Tubes With 10 FPI Fin Densities Segment Fins 0Extruded OD 1'' Aluminum Finned Tubes With 10 FPI Fin Densities Segment Fins 1
