Seamless Carbon Steel Embedded Fluted Finned Tube With 0.55mm Fin Stock
  • name
  • name

Seamless Carbon Steel Embedded Fluted Finned Tube With 0.55mm Fin Stock

MOQ: N/A
Price: N/A
Standard Packaging: (1) Steel frame case sealed by plywoods with each end capped;(2) Solid fumigated wooden box with each end capped.
Delivery Period: Ex-work with 1 month after order.
Payment Method: T/T, L/C
Supply Capacity: Daily capacity up to 7,000 Meters
Detail Information
Product Description
Detail Information
Place of Origin
China.Imported materials are available.
Brand Name
Reliance
Certification
CE,ISO...
Model Number
Type G fin tube
Compamy Type:
Manufacturer, Importer & Exporter
Fin Tube Type:
Grooved Fin Tube,G-Fin Tube
Tube Material:
Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc...
Fin Material:
Aluminum, Copper And Steel
Fin Tube Length:
No Limit
Fin Pitch:
12FPI Min
Highlight:

Steel Fin Tube

,

Finned Tubing

Product Description

Seamless carbon steel embedded fluted finned tube with 0.55mm Fin Stock



Detail:



G Fin Finning Lines: 7 finning machines.

Daily capacity up to 7,000 meters.



Tube OD: 50.8mm(2'') max.

Tube Length: 18,000mm max.

Fin Height: 16.5 mm max.

Fin Thickness: generally 0.4mm ~0.6mm

Fin Pitch: 2.1 mm (12FPI) min.



Manufacturing process

The aluminum fin strip is tension wound and placed into a groove cut into the tube.



G Fin Fluted Depth:

Appr. 0.4mm.



Surface Protection:

Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance criteria:

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions.



Accessories

Tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).



Delivery condition:

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube.



Packing: The desiccants are put into each package for continental transporation as well.



Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



Specifications:



Grooved G type Finned Tubes are combined with two different materials.



Items General Materials Popular ASTM Materials
Core Tube Material

  carbon steel, ow-alloy steel,

  stainless steel, brass, copper,

  cooper-nickel alloys,

  aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,

                              A789 S31803/S2205 etc...

3. Copper:UNS12200/UNS14200/UNS70600,

                 CuNi70/30,CuNi 90/10
Fins Material

1. Aluminum

2. Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.



All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.

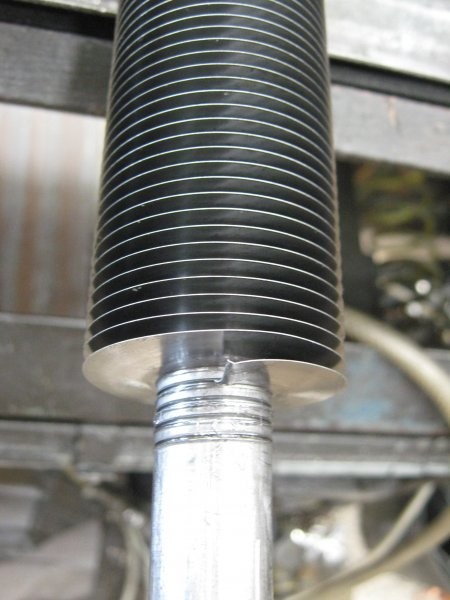

Seamless Carbon Steel Embedded Fluted Finned Tube With 0.55mm Fin Stock 0Seamless Carbon Steel Embedded Fluted Finned Tube With 0.55mm Fin Stock 1
