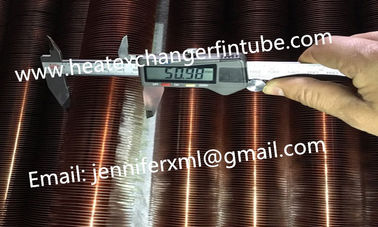

2'' Copper Finned Tube Type L Tension Copper Finned Tubes With 3/4'' Tube OD

  • 2'' Copper Finned Tube Type L Tension Copper Finned Tubes With 3/4'' Tube OD
  • 2'' Copper Finned Tube Type L Tension Copper Finned Tubes With 3/4'' Tube OD
Place of Origin China, import materials are available
Brand Name Reliance
Certification CE,ISO...
Model Number Type LL fin tube, Overlapped fin tube
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Steel frame case sealed by plywoods with each end capped; (2)Solid fumigated wooden box with each end capped.
Delivery Time Normally Ex-work with 1 month
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 5,000 Meters

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Compamy Type Manufacturer & Exporter Fin Tube Type Type L Fin Tube/ Tension Wrapped Finned Tube
Fins Type Solid,plain Tube Material Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc...
Fin Material Aluminum, Copper And Steel Tube Length No Limit
Fin Thickness Generally 0.4mm Required Packing Wooden Box / Steel Frame Case
High Light

fintube

,

aluminum fin tube
Leave a Message
Product Description

2'' copper finned tube OD, type L tension copper finned tubes with 3/4'' tube OD



Quick Detail:



General LL Type production capacity

 General specifications of L Type fin tubes

Finning Facility: 7 finning machines;

Daily capacity up to 5000 meters;

Tube OD: 50.8mm max.

Tube Length: no limit.

Fin Height: 16.5 mm max.

Fin Thickness: generally 0.4mm ~0.6mm

Fin Pitch: 2.1 mm (12FPI) min.

LL Type Finned Tube (LL-Wound Fin Tubes) process: Fins made by wrapping base tube with fin strip, as in the case of type ‘L’ Tension Wound Type.





Description:



Manufacturing process:  The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface.





Surface Protection

Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance Criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).



Accessories

Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).



Delivery Condition

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of LL Type Tension Wound Finned Tube.



Packing:

The desiccants are put into each package for continental transportation as well.



Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



pecifications:



LL Type Tension Wound Tube is combined with two different materials.



 Items General Materials Popular ASTM Materials
Core Tube Material  Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L

3. Copper:UNS12200/UNS14200/UNS70600,

                 CuNi70/30,CuNi 90/10

4. Titanium: B338 Gr 2
Fins Material

Aluminum & Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.





All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch

5/8

/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12
