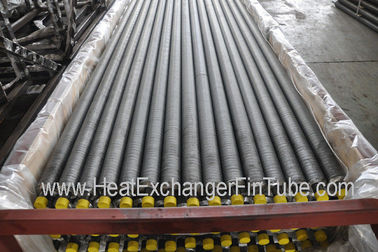

OD 2'' Aluminum 1060 H14 Solid / Plain L/LL/KL Type Fin Tube

  • OD 2'' Aluminum 1060 H14 Solid / Plain L/LL/KL Type Fin Tube
  • OD 2'' Aluminum 1060 H14 Solid / Plain L/LL/KL Type Fin Tube
Place of Origin China, import materials are available
Brand Name Reliance
Certification CE,ISO...
Model Number TYPE "L", Tension wound
Minimum Order Quantity N/A
Price N/A
Packaging Details (1)Steel frame case sealed by plywoods with each end capped; (2)Solid fumigated wooden box with each end of capped.
Delivery Time Ex-work with 1 month on receipt of order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 5,000 Meters

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Compamy Type M Manufacturer & Exporter Fin Tube Type Type "L" Finned Tube
Fins Type Solid,Plain Tube Material Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc...
Fin Material Aluminum, Copper And Steel Fin Height 16mm Max.
Fin Thickness 0.28mm/ 0.4mm /0.5mm FIN Tube Length No Limit
High Light

finned tube

,

fintube
Leave a Message
Product Description

aluminum 1060 H14 fins, 2'' finned tube OD, Type L aluminum finned tubes





Manufacturing process:



The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface.







General L-type production capacity

General specifications of L type fin tubes

Finning Facility: 5 finning machines;

Daily capacity up to 5000 meters;

Fin type: Solid plain

Tube OD: 50.8mm max.

Tube Length: no limit

Fin Height: 16 mm max.

Fin Thickness: generally 0.4mm ~0.6mm

Fin Pitch: 2.1 mm (12FPI) min.





Surface Protection



Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance Criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).



Accessories

Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).



Delivery Condition

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of LL Type Tension Wound Finned Tube.



Packing:

The desiccants are put into each package for continental transportation as well.



Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



Specifications:



One Tension Wound Tube is combined with two different materials.



 Items General Materials Popular Materials
Core Tube Material  Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L

3. Copper:UNS12200/UNS14200/UNS70600,

                 CuNi70/30,CuNi 90/10

4. Titanium: B338 Gr 2
Fins Material

Aluminum & Copper & Steel

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.

3. Steel







All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Pease email us for more information.





Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 7  finning machines, daily production capacity up to 5,000 meters.
  2. The finning machines are designed and assembled by ourselves (Reliance) and we can offer you finning machines and all accessories etc...
  3. This method of manufacturing L tension type enables us to place the finning on a very thin-walled tube with is particularly desirable when using high value alloys (titanium, stainless, copper, nickel).The tube can withstand a temperature of up to 150°C without the risk of atmospheric corrosion or thermal stress.
  4. L TYPE fin tubes provide contact area between the fin strip and the tubes surface and protect the tube wall from atmosphere corrosion. This LL TYPE design is much economical than KL, even G-embedded type. OD 2'' Aluminum 1060 H14 Solid / Plain L/LL/KL Type Fin Tube 0
