Heat Exchanger Type G Embedded Fin Tube Machine , Diameter 3/4" 1"

Heat Exchanger Type G Embedded Fin Tube Machine , Diameter 3/4" 1"
Heat Exchanger Type G Embedded Fin Tube Machine , Diameter 3/4" 1"

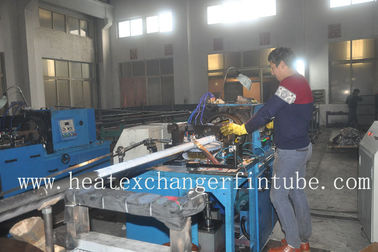

Large Image :  Heat Exchanger Type G Embedded Fin Tube Machine , Diameter 3/4" 1"

Product Details:
Place of Origin: China
Brand Name: RELIANCE
Certification: CE,ISO...
Model Number: Reliance-1518
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Price: N/A
Packaging Details: Solid fumigated wooden box loaded into 20 feet Container.
Delivery Time: Ex-work within 2 months on receipt of deposits.
Payment Terms: T/T, L/C
Supply Ability: Ex-work within 2 months for one set machine.
Detailed Product Description
Name: Embedded Fin Tubes Fining Machine Tube Material: Carbon Steel,Stainless Steel, Alloy Steel,copper Etc...
Fin Material: Aluminum, Copper,Steel Fin Type: Embedded Fins/ G Fins
Tube OD: 15.88mm(Min.) Tube Length: No Limit
Fin Height: 16mm(Max.) Fin Pitch: 2mm(Min)
Fin Thickness: 0.28mm~0.55mm Voltage: 415V / 50HZ (as Per Client's Requirement)
Package: Plywood Box (export Packing) Training: Supplier's Site OPERATION Training
High Light:

tube finning machine

,

finned tube machine

G-Fin machine, tubes outer diameter 3/4" and 1", carbon and stainless steel, aluminium fins



Quick Details



heat exchanger Type G Fin tubes machine



Name

Embedded Fin Tube Machine

Brand/Mode No   Reliance/ Mode No:1518
Tube Material

Seamless steel tubes(CS,SS,AS)

Welded steel tubes(CS,SS)

Copper/Brass/Brone

Fins

Material

  Alu.1060

  Alu 1100

  Alu. 1050

  Copper



General description of G-Type finning machine.

1. Embedded Machine Mode No: Reliance-1518

2. Embedded Machine Power Output: 380V/50HZ (Chinese Standard).

3. The motors of export embedded finning machine are supplied upon clients’ requests.



One complete set of Embedded Finning Machine consisting  following:

1. Finning head

2. PLC controlled power box

3. Without Finning input racks and output racks (We will offer design drawings before delivery)

5. Technical know-how(Operation Manual in English)



Dimensions Data are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.



Service After Sales

1. Technical support

2. Operation training at your site or in Reliance's Plant or both

3. Information on maximun production criteria

4. Reference charts

5. Specifications for tube and fin strips.



Heat Exchanger Type G Embedded Fin Tube Machine , Diameter 3/4" 1" 0



Heat Exchanger Type G Embedded Fin Tube Machine , Diameter 3/4" 1" 1
