Helicoidal Groove Cooling L/LL/KL/G Embedded Fin Tube Machine

Place of Origin China
Brand Name Reliance
Certification CE,ISO...
Model Number Reliance-1518(TYPE A)
Minimum Order Quantity N/A
Price N/A
Packaging Details Solid fumigated wooden box loaded into 20 feet Container.
Delivery Time Ex-work within ~2.5 months on receipt of deposits or to be discussed.
Payment Terms T/T, L/C
Supply Ability Ex-work within ~2.5 months or to be discussed.
Product Details
Company Manufacturer, Importer & Exporter Fin Tube Type Embedded Fin Tube Or G Type Fin Tube
Fins Type Solid,plain Origin China
Nearest Port Shanghai Port,China Recent Buyer From India In Nov. 2014
High Light

tube finning machine

,

finned tube machine

Leave a Message
Product Description

L/LL/KL/G Fin Type Machine , Helicoidal Groove Cooling Fin Tube Machine



Quick Details

Name

Embedded Fin Tube Machine

Brand/Mode No   Reliance/ Mode No:1518
Tube Material

Seamless steel tubes(CS,SS,AS)

Welded steel tubes(CS,SS)

Copper/Brass/Brone

Fins

Material

  Alu.1060-O,  Alu. 1060-H14

  Alu 1100-O, Alu. 1050

  Copper



General description of G-Type finning machine.

1. Embedded Machine Mode No: Reliance-1518(Our internal design No.)

2. Embedded Machine Power Output: 380V/50HZ (Chinese Standard).

3. The motors of export embedded finning machine are supplied upon clients’ requests.



One complete set of Embedded Finning Machine consisting  following:

1. Finning head

2. PLC controlled power box

3. Without Finning input &output racks ( We will offer the design drawings after order)

5. Technical know-how(Operation Manual in English)



Dimensions Data are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.



Service After Sales

1. Technical support

2. Operation training at your site or in Reliance's Plant or both

3. Information on maximun production criteria

4. Reference charts

5. Specifications for tube and fin strips.

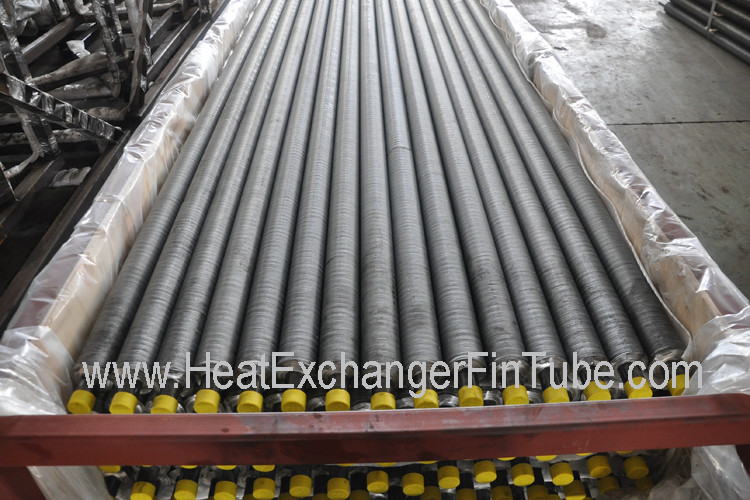

Helicoidal Groove Cooling L/LL/KL/G Embedded Fin Tube Machine 0

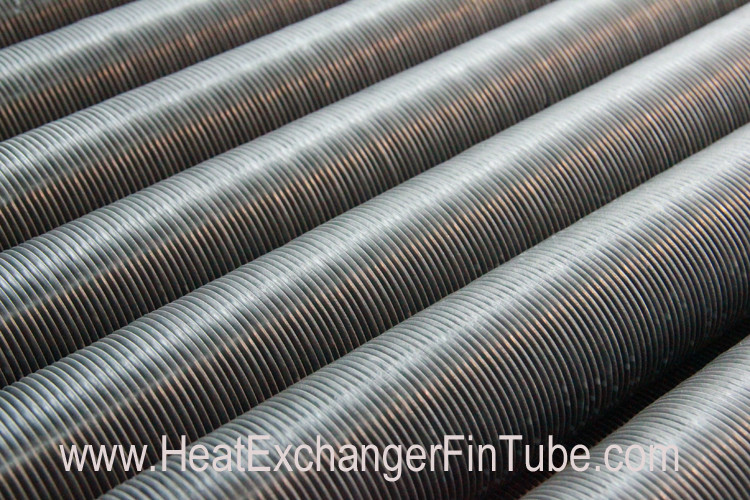

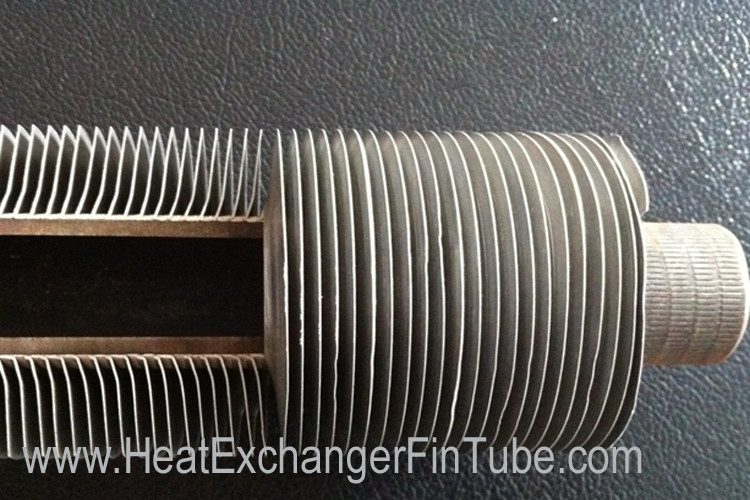

Helicoidal Groove Cooling L/LL/KL/G Embedded Fin Tube Machine 1Helicoidal Groove Cooling L/LL/KL/G Embedded Fin Tube Machine 2

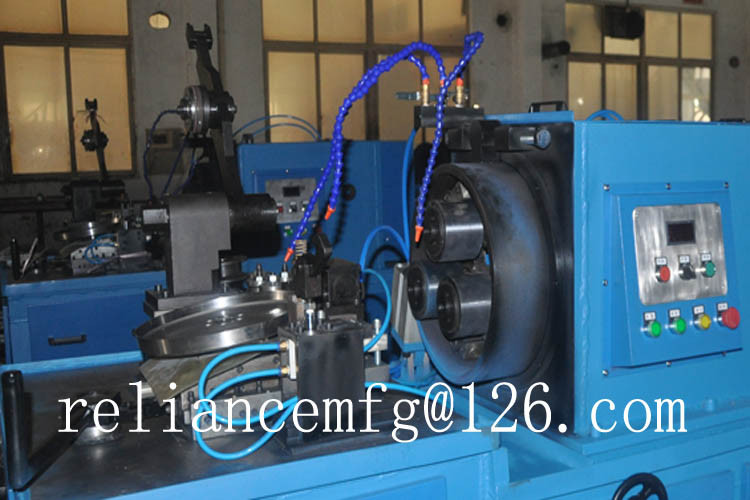

Helicoidal Groove Cooling L/LL/KL/G Embedded Fin Tube Machine 3
