DIN 17175 P235GH TC1 DN40 48.3mm Heat Exchanger Fin Tube For Furnace
  • name

DIN 17175 P235GH TC1 DN40 48.3mm Heat Exchanger Fin Tube For Furnace

MOQ: N/A
Price: N/A
Standard Packaging: (1) Waterproof steel frame bundle with each end capped; (2) Steel frame case sealed by plywoods with each end capped.
Delivery Period: Ex-work with 5 week on receipt of order.
Payment Method: T/T, L/C
Supply Capacity: Daily capacity up to 80,000 studs
Detail Information
Product Description
Detail Information
Place of Origin
China.
Brand Name
Reliance
Certification
CE,ISO...
Model Number
Stud Pipe
Compamy Type:
Manufacturer, Importer & Exporter
Fin Tube Type:
Studded Tubes/Stud Welding Tube
Fins Type:
Round,Oval,Pin
Tube Material:
CS, SS, Low Alloy Pipe
Fin Material:
CS,SS,Alloy
Tube Length:
No Limit
Pin OD:
Min. 6 Mm
Pin Height:
Min. 10mm
Highlight:

48.3mm Heat Exchanger Fin Tube

,

DN40 Heat Exchanger Fin Tube

,

DIN 17175 stainless steel fin tube

Product Description

DIN 17175 St35.8.I or P235GH TC1 , SML TubesDN40(48.3mm) , welded  with Carbon Steel Studs Heating Pipe



Description:



General Studded Tubes production capacity

 General specifications of Studded Tubes tubes

Production facility: 3 finning machines;

Daily capacity up to 80,000 studs;

Tube OD            : 219 mm max.

Tube Thickness  : 4mm~15mm

Tube Length       :  No limit

Studs OD            :  OD6mm~OD16mm

Studs Height       : 10mm Min.





Manufacturing process:

Studs are fully automatically welded onto the tube by resistance welding.



Acceptance criteria

Approved drawings and the delivery conditions (TDC) of clients.



Delivery condition

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of extruded bimetallic fin tube.

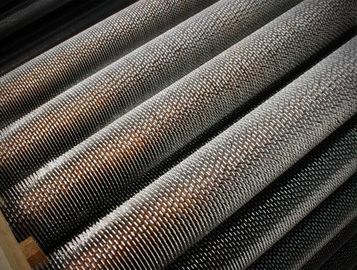

DIN 17175 P235GH TC1 DN40 48.3mm Heat Exchanger Fin Tube For Furnace 0

Surface Protection:

Oil dip, black coating or varnish.



Type of Studs

Cylindrical or elliptical



Documentation

It shall include raw materials mill certificates, inspection and test samples results and warranty certificate of manufacturer.



Applications:

  1. Furnace
  2. Chemical
  3. Petrochemical industry
  4. Power station etc.



Specifications:



Items General Materials Popular ASTM /ASME Materials
Core Tube Material

 Carbon Steel

 Alloy Steel

 Heat  Resistant Steel,

 Stainless Steel

1. Carbon Steel: A106 Gr. B

2. Stainless Steel: TP304/304L,TP316/TP316L, TP347

3. Alloy Steel: P5,T5,P9,T9,T11,T22

Studs

Material

 Carbon Steel

 Stainless Steel

1. Carbon Steel

2. Stainless Steel:

     TP409/410,TP304/304L,TP316/TP316L, TP321/TP321L



Dimensions Data Sheet We're Supplying.

  General Descriptions of Studded tubes

Popular Specifications we make

Tube OD(mm)

OD38mm~OD219mm

Tube Wall Thickness(mm)

4mm~15mm

Tube Length(mm)

16,000mm Max.

Studs OD(mm)

OD6mm~OD16mm

Studs Height(mm)

10mm~45mm

Please email us for more information as your request.
