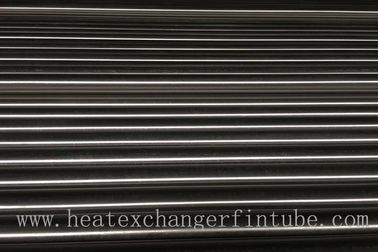

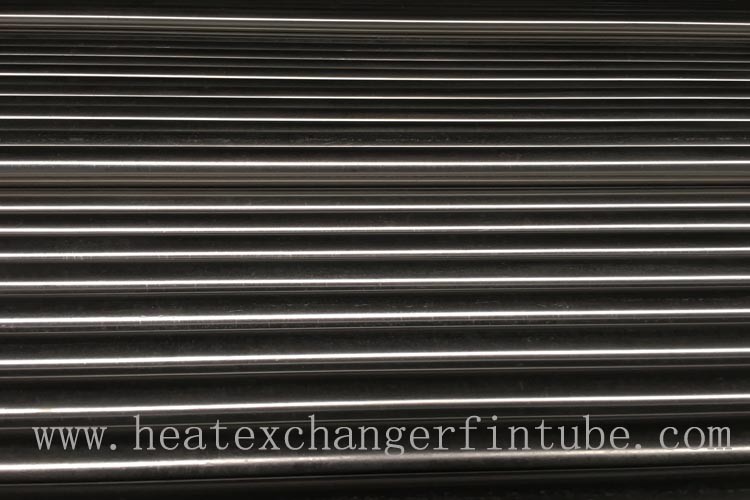

0.8mm ASTM A210 Seamless Boiler Tube Grade A1 For Superheater

Certification CE,ISO...
Minimum Order Quantity N/A
Packaging Details wooden box
Delivery Time Ex-work within 1 month after order.
Payment Terms T/T, L/C

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASTM A210/A210M (ASME SA210/SA210M) Out Dimensions 12.7mm-114.3mm
Wall Thickness 0.8mm-15mm Length 5-25mm
STANDARD ASTM A210 Type Seamless Medium-Carbon Steel Boiler And Superheater Tubes
High Light

0.8mm seamless boiler tube

,

ASTM A210 seamless boiler tube

,

ASTM A210 seamless steel pipes

Leave a Message
Product Description

ASTM A210 Seamless Carbon Steel Tube , Boiler Steel Pipe Wall Thickness 0.8mm - 15mm

Quick Detail:
Standard: ASTM A210/A210M (ASME SA210/SA210M)
Seamless Medium-Carbon Steel Boiler and Superheater Tubes
Size:(mm)
Out Dimensions: 12.7mm-114.3mm
Wall Thickness: 0.8mm-15mm
Length: 5-25mm


Applications:

It is used for boiler and boiler flue tubes. Including safe end, vault and supporting tube and super heater min wall thickness seamless medium--carbon steel tube


Chemical Requirements:


STANDARD

GRADE

                           CHEMICAL COMPOSITION

C

Si

Mn

P

S

Cr

Mo

Cu

Ni

V

ASTM A210

  A-1

≤0.27

≥0.10

≤0.93

≤0.035

≤0.035











   C

≤0.35

≥0.10

0.291.06

≤0.035

≤0.035












Mechanical Properties:


Grade

Yield Strength (Mpa)

Tensile Strength (Mpa)

Elongation (%)

A-1

≥255

≥415

30

C

≥275

≥485

30


Wall Thickness Tolerance



ASME SA-210

OD

WT

WT Tolerance

<=38.1

/

+20%,-0%

>38.1

/

+20%,-0%

Description:

ASTM A210 is the standard covers seamless medium-carbon steel boiler and superheater tubes.ASTM A210 also covers minimum-wall-thickness, tubing sizes, boiler flues including safe ends, arch and stay tubes. ASTM A210 provides tensile and hardness properties but only applicable to certain size limitations. Material manufacturing shall be killed. Tubes shall be made by seamless process, marked as either hot-finished or cold-finished. Surface condition shall be specifically stated in the order. Chemical composition shall conform to the requirements. Elemental composition other than listed here shall not be permitted. Tension test, flattening test, flaring test, hardness test, hydrostatic or nondestructive electric test shall be made on specimens. Superheater tubes shall be formed without defects and shall withstand expansion, beading, forging, welding, and bending.


ASTM A210/A210M Seamless Medium-Carbon Steel Boiler Tubes
Seamless Medium-Carbon Steel Boiler and Superheater Tubes

Steel Grde:
Grade A1; Grade C
Packing:
Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection
Inspection and Test:
Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test.
Surface treatment:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Mark:
As requested.


Delivery Condition:
Annealed, Normalized, Normalized and Tempered
