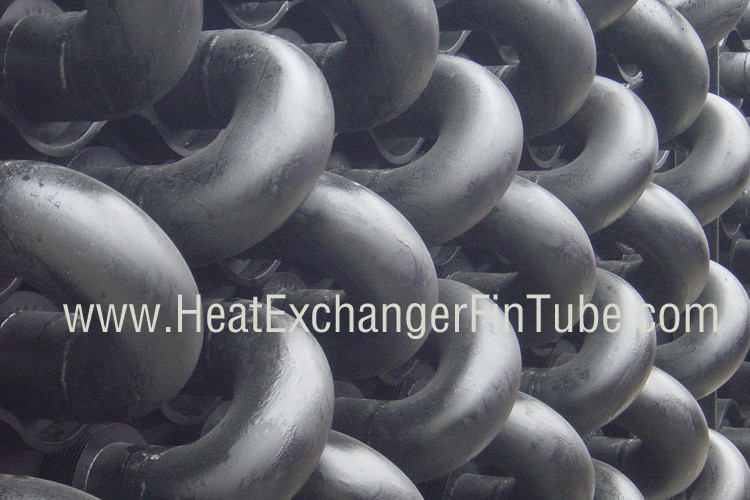

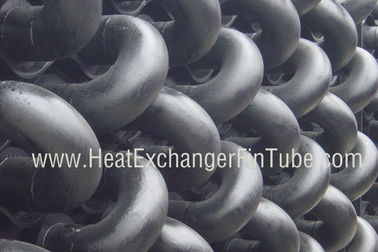

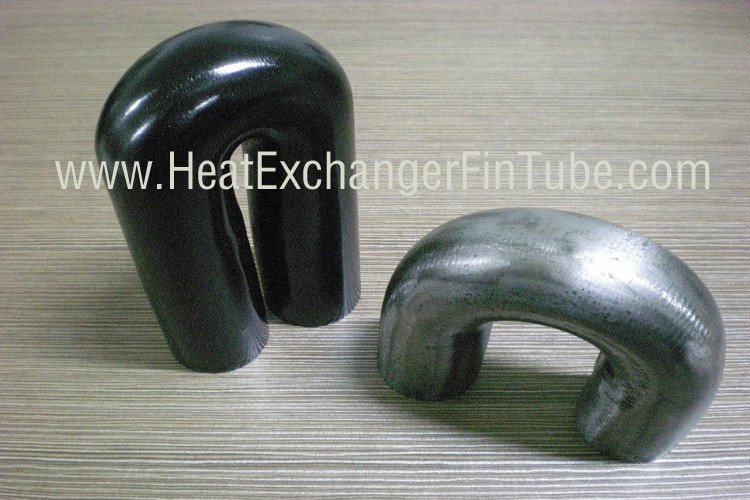

WPB Butt Welded 180 Degree Elbow LR / SR Seamless Carbon Steel A234

Place of Origin China. Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number Tube Coil
Minimum Order Quantity N/A
Packaging Details Solid fumigated wooden box
Delivery Time Ex-Work within 1 month on receipt of order.
Payment Terms T/T, L/C

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Company Type Manufactuer,Importer & Exporter Secondary Operations Elbows,"U" Bends & Tube Coils
Origin China Nearest Port Shanghai Port,China
Professional Associations Cryogenic Society Of America
High Light

tubing elbows

,

180 degree pipe elbow

Leave a Message
Product Description

180 DEGREE ELBOW LR / SR SEAMLESS CARBON STEEL A234 WPB BUTT WELDED



Specifications



1.Certification:CE/API Q1/ASEM aaUaa /ASEM aaSaa/ NB/ISO9001/ISO14001/OHSAS18001


 2.1: Butt Weld Fittings(elbow,tee,cross,bend,reducer,cap,etc.)



                 SIZE:   1/2"--72" (or as per clients' requirements)



                 W.T.:   2MM- 120MM (or as per clients' requirements)



                 STANDARD:   ASME/ANSI B16.9, B16.28,MSS SP-75, DIN2605 / 2615 / 2616, JIS P2311/2312



 2.2: Forged Fittings(union, compling,forged tee,elboet, nipoolet,ect.)



                 CONNECTION:   THREAD/NPT(M/F)/ SOCKET WELD/SCREWED



                 SIZE:  1/2”- 4”



                 RATING:   2000#,3000# 6000# 9000# / 2000LB,3000LB, 6000LB,9000LB



                 STANDARD:   ASME/ANSI B16.11, MSS SP 83



   2.3:Flanges



      FACE: RF/FF/RTJ



      SIZE:   1/2”- 42”(or as per clients' requirements)



      RATING:   150#,300#,600#,900#,1500#,2500#-150LB,300LB,600LB,900LB,1500LB,2500LB



      STANDARD:   ASME/ANSI B16.5, ASME /ANSI B16.47 A&B



    2.4:Pipes



   TYPE:PIPE SEAMLESS/ERW/EFW/SAW



     SIZE:   1/8”-72”(or as per clients' requirements)



      W.T. :   SCH5S-XXS(or as per clients' requirements)



     STANDARD:   ASME/ANSI B36.10, B36.19



3. Packing&Shipping:

   woodencase/pallent, suitable for sea shippment.

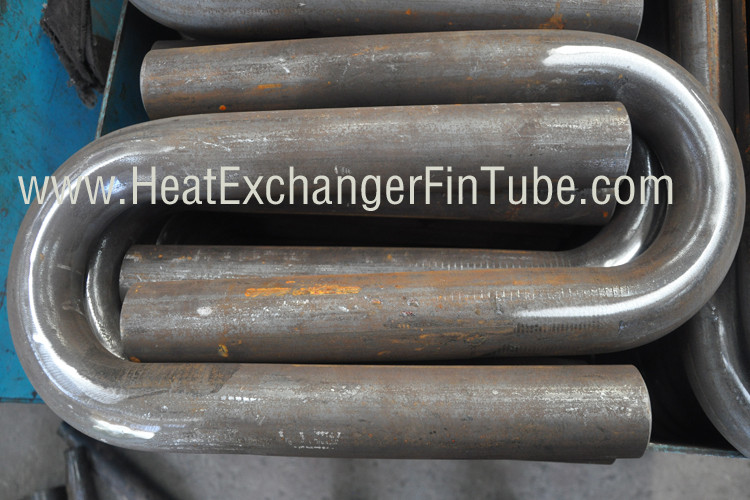

Depending on the bend radius finned tubing can be formed directly over a mandrel thereby eliminating the need for bending bares. "U" bends can still be supplied with center bare areas if necessary. Our FINBRAZE® products can be easily coiled using a tube made of Copper, Carbon,Steel, Stainless Steel and other common metal types.
