Helicoidal Groove Cooling Embedded Fin Tube Machine , G Type Alu & Copper

Place of Origin China
Brand Name Reliance
Certification CE,ISO...
Model Number Reliance-1518
Minimum Order Quantity N/A
Price N/A
Packaging Details Solid fumigated wooden box loaded into 20 feet Container.
Delivery Time Ex-work within 50 days on receipt of order.
Payment Terms T/T, L/C
Supply Ability Ex-work within 7 weeks for 1 set and large quantities shall be discussed.
Product Details
Company Manufacturer, Importer & Exporter Fin Type Type L/LL/KL & Embedded G Finned Tube
Tube Material Carbon Steel, Stainless Steel, Copper Etc... Fin Material Aluminum , Copper, Steel
Voltage 380V, 415V Frequency 50Hz
Tube Length No Limit Origin China
High Light

Finned Copper Tube

,

Finned Tubing

Leave a Message
Product Description

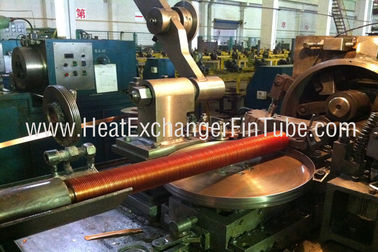

Embedded  G Fin Type Machine , Helicoidal Groove Cooling Fin Tube Machine

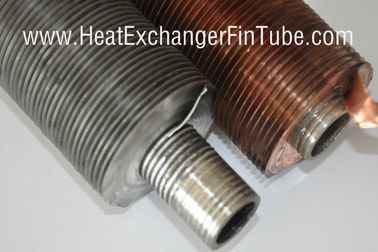

PS: This is the product introduction of G type Embedded fin tubes.



Quick Details

Name

Embedded Fin Tube Machine

Brand/Mode No   Reliance/ Mode No:1518
Tube Material

Seamless steel tubes(CS,SS,AS)

Welded steel tubes(CS,SS)

Copper/Brass/Brone

Fins

Material

  Alu.1060-O,  Alu. 1060-H14

  Alu 1100-O, Alu. 1050

  Copper



General description of G-Type finning machine.

1. Embedded Machine Mode No: Reliance-1518(Our internal design No.)

2. Embedded Machine Power Output: 380V/50HZ (Chinese Standard).

3. The motors of export embedded finning machine are supplied upon clients’ requests.



One complete set of Extruded Finning Machine consisting  following:

1. Finning head

2. PLC controlled power box

3. Finning input racks

4. Finning output racks

5. Technical know-how(Operation Manual in English)



Dimensions Data are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.



Service After Sales

1. Technical support

2. Operation training at your site or in Reliance's Plant or both

3. Information on maximun production criteria

4. Reference charts

5. Specifications for tube and fin strips.
