High performance condneser tubes, B111 C68700 core tubes with embedded C12200 Fins
  • name
  • name

High performance condneser tubes, B111 C68700 core tubes with embedded C12200 Fins

MOQ: No limit
Standard Packaging: (1) Steel frame case sealed by plywoods; (2) Solid fumigated seaworthy wooden box.
Delivery Period: ~5 weeks ex-work
Payment Method: L/C, T/T
Supply Capacity: 7000meters per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Reliance
Certification
ISO9001
Model Number
Type G , embedded fins
Fin Pitch:
12/11/10/9/8 FPI Ect.
Material:
Alu.1060/1050/1100/5052
Thickness:
0.35~0.55 Generally
Fin Type:
Embedded Fin Tube
Tube OD:
Min. OD12.7 (1/2'')
Tube Mat.:
No Limit
Certificate:
ISO9001
Highlight:

Plain Fins Inner Grooved Tube

,

Alu.1060 Inner Grooved Tube

,

Plain Fins Inner Grooved Tube Alu.1060

Product Description
High performance condneser tubes,
B111 C68700 core tubes with embedded C12200 Fins

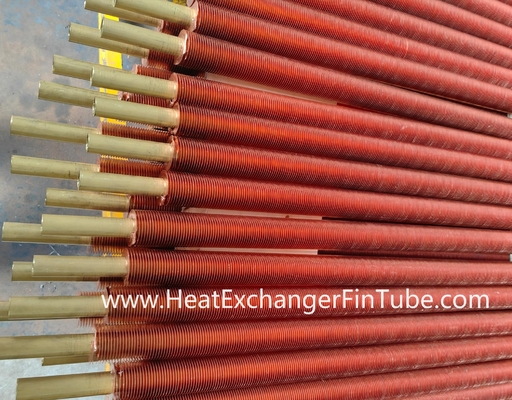

High performance condneser tubes, B111 C68700 core tubes with embedded C12200 Fins 0High performance condneser tubes, B111 C68700 core tubes with embedded C12200 Fins 1

Quick Detail:



G fin Finning lines: 7 finning machines.

Daily capacity up to 7000 meters.



Tube OD: 50.8mm(2'') max.

Tube Length: 18,000mm max.

Fin Height: 16.5 mm max.

Fin Thickness: generally 0.3mm ~0.6mm

Fin Pitch: 2.1 mm (12FPI) min.



Manufacturing process

The aluminum fin strip is tension wound and placed into a groove cut into the tube with appr. 0.4mm fluted depth.



Surface Protection of Plain Ends

Both ends of Grooved G type Fin Tubes shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).



Accessories

Tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).



Delivery condition:

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube.

The desiccants are put into each package for continental transporation as well.

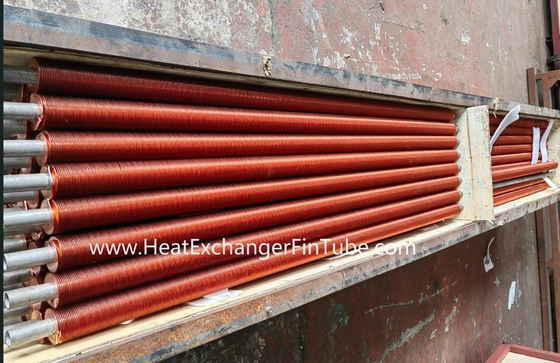

Below is the photo we shipped packages to Shanghai port.

High performance condneser tubes, B111 C68700 core tubes with embedded C12200 Fins 2



Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



Specifications:



Grooved G type Finned Tubes are combined with two different materials.



Items General Materials Popular ASTM Materials
Core Tube Material

Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.



1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,

A789 S31803/S2205 etc...

3. Copper:UNS12200/UNS14200/UNS70600,

CuNi70/30,CuNi 90/10
Fins Material

1. Aluminum Alloy

2. Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.



All dimensions are in Inches and specification upon your requests.
Tube OD Fin Height Fin Thickness Fins per Pitch(Density)
5/8 3/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
3/4 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 1/4 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 1/2 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
Please email us for more information.





Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 5 finning machines, daily capacity up to 3,500 meters.
  2. The Grooved G type Finning Machines are designed and assembled by ourselves and we can offer you finning machine and all accessories etc...
  3. The contact of manufacturing Grooved fin tubes is designed for a high wall temperature of up to 350°C.
