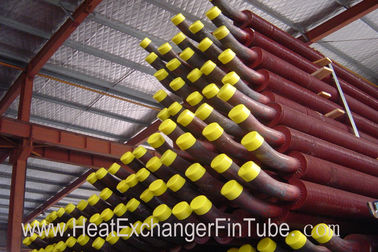

P235 GH TC1/2 SMLS Carbon Steel Tube, Welded Helical Bent Evaporator Fin Tube
Detail:
High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.
General HF welding production capacity |
General specifications of HF welding fin tube |
Welding Facility: 4 finning machines; Daily production capacity up to 40 tons; HFW Fin type: solid plain and serrated. |
Tube OD: 19mm min. Tube Length: 18 meters max. Fin Height: 32 mm max. Fin Thickness: 0.8mm min Fin Pitch: min. 4 mm for solid fins & 3.3mm for serrated fins. |
Manufacturing Process: The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using high frequency resistance welding technique.
We produce both solid plain and serrated helical welded steel finned tube. And also, all spiral welding tubes could be bent in the middle or at the end of fin tubes, we call it Hairpin tubes.
Acceptance Criteria:
INTERNATIONAL STANDARD FOR DIMENSIONS, TOLERANCES, AND TESTS OF HIGH FREQUENCY RESISTANCE WELDED FINS or the delivery conditions (TDC) of clients.
Visual check:
Un-welded parts of fin, fin damage after fining, copper pollution, tears, wrap etc…
Dimensional check:
Fin height, fin spacing, fin inclination, fin corrugation, length of finned & un-finned portion etc…
Bending check:
Ovality, thickness and area reduction.
Surface Coating:
outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form.
Tube End Finish:
Bevel @ (30°~35°)
Bevel Root Size
0.5mm~1.5mm
Delivery condition
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of helical welded tubes.
Documentation:
It shall include QAP, WPS, PQR& WPQ, raw materials mill certificates, inspection and test samples results and warranty certificate of manufacturer.
Applications:
The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….
Applications:
The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….
Specifications:
A wide range of fin and tube materials could be combinations are available.
Specifications:
A wide range of fin and tube materials could be combinations are available.
Items | General Materials | Popular ASTM Materials |
Core Tube Material |
Carbon Steel , Alloy Steel, Heat Resistant Steel, Stainless Steel etc. |
10#,20#,15CrMo,Cr5Mo,Cr9Mo,1Cr18Ni9Ti,0Cr18Ni9, 00Cr17Ni14Mo2,SA106B,SA106C, SA192, SA179, SA178,SA214, SA210-A1, SA210-C,TP304/304L/304H, TP409/410,TP316/316L,TP321/321L,TP347H,T11,T22,T91,etc.
|
Fins Material |
Carbon Steel , Alloy Steel, Heat Resistant Steel, Stainless Steel etc. |
Q235-BF,08F,08AL, 1Cr18Ni9Ti, 0Cr13, 1Cr13, 0Cr18Ni9, 09CrCuSb, CS,A1008-B,SPHC, SPCC, TP304/304L,TP316/316L,TP321/321L,etc. |
Dimensions Data Sheet We Can Supply.
Solid Helical Steel Fin Tubes Fabrication Range |
Solid fins(mm) |
Serrated fins |
||
Min |
Max |
Min |
Max |
|
Tube OD(mm) |
19 |
219 |
19 |
219 |
Fin Height(mm) |
8 |
26 |
8 |
32 |
Fin Thickness(mm) |
0.8 |
2.8 |
1 |
1.6 |
Fins Density(mm) |
4(250FPM) |
20 |
3.3(303FPM) |
20 |
Tube Length(mm) |
N/A |
18000 |
N/A |
18000 |
Additional supply range : (1) Tube swaging process for joint of 2 tubes. (2) Spacer rings (material: steel) are available. (3) One side is solid plain fins and the other is serrated fins, 2 fin types on same tube. |
Competitive Advantage:
- We have more than 10,000 square meters workshop, including 4 ERW high Frequency welding fining lines, daily production capacity around 40 Tons;
- Our quality assurance plan for High Frequency Welding Spiral Steel Tubes. (2.1) Raw material control for both plain tubes and fins. (2.2) In process control with reports,as WPS, PQR&WPQ; weld deposition efficiency test before fabrication, Non-destructive test and tensile test etc. (2.3) Final inspection control with reports (Visual and dimensional check etc…).
- The High Frequency Resistance Welded Fin Tube is integrally extended for the max surface area to achieve efficiency. The heat transfer ratio of high frequency welding fin tube is about 8~9 times higher than other plain tubes.
- This Welded Helical Fin Tubes is a singular integral unit, eliminating heat contact resistance and losses. Generally tube side temperature up to 800 degree for stainess steel fins; Low carbon steels, withstanding up to 475 degree is the most common choice.
