Fin 36ES Carbon Steel SA106B Longitudinal Finned Tubes , 19mm Height
  • name
  • name
  • name

Fin 36ES Carbon Steel SA106B Longitudinal Finned Tubes , 19mm Height

MOQ: N/A
Price: N/A
Standard Packaging: Steel frame case sealed by plywood with each tube end capped.
Delivery Period: As per order and clients' requirement
Payment Method: T/T, L/C
Supply Capacity: Daily production capacity up to 500 Meters.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Reliance
Certification
CE,ISO...
Model Number
Longitudinal Tube
Company Tube:
Manufacturer,Importer & Exporter
Fin Tube Types:
Longitudinal Tube
Fins Type:
Plain Strips,U Shaped Strips,Twist
Origin:
China
Highlight:

Longitudinal Finned pipe

,

longitudinal finned tube

Product Description

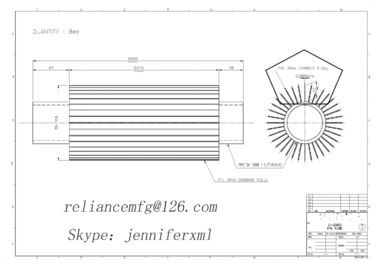

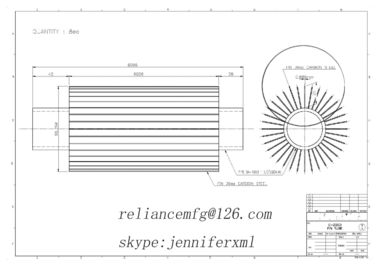

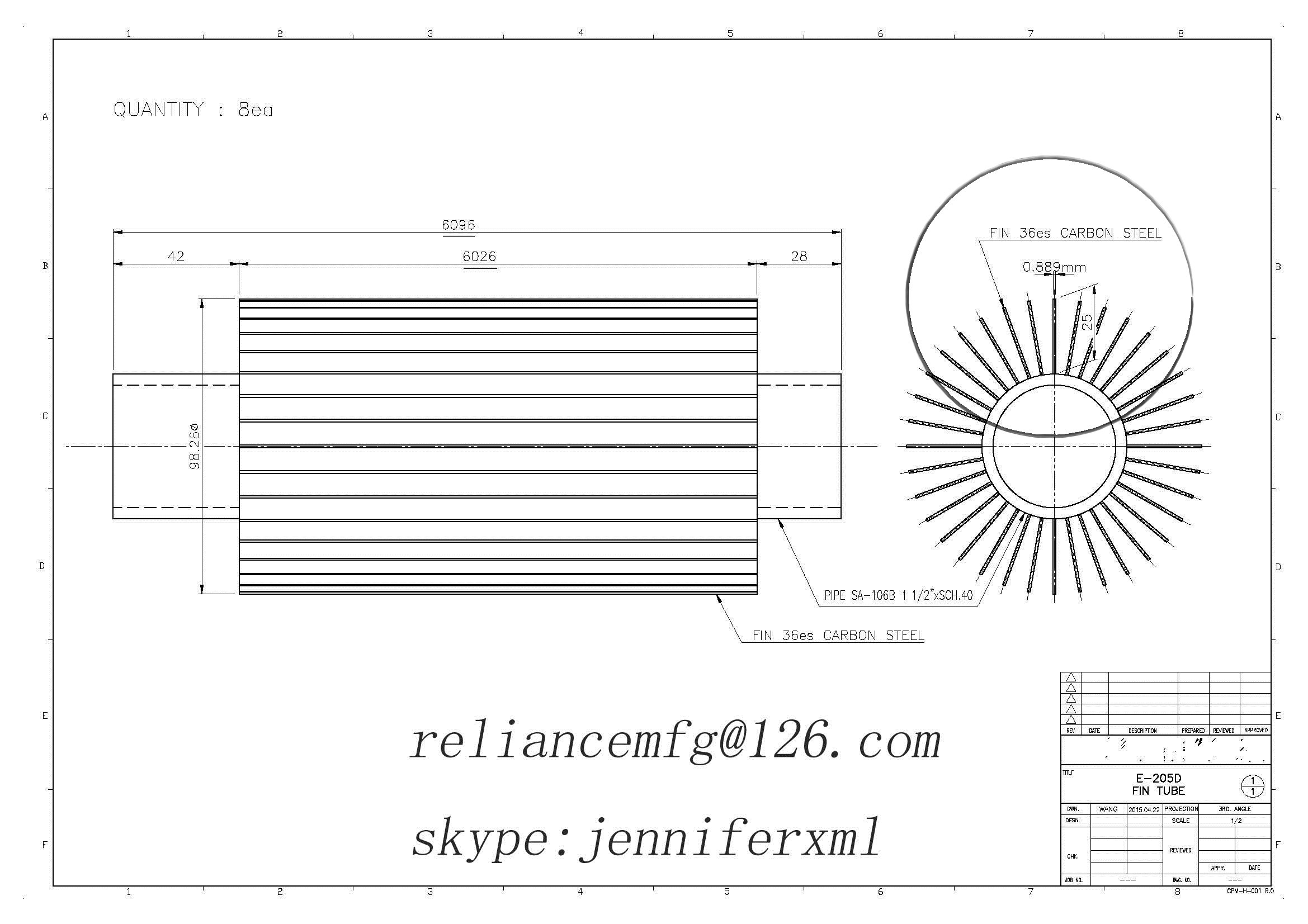

SA106B Longitudinal Tube , Fin 36ES carbon steel , 19mm  fin height , 0.889mm fin thickness



Quick Detail



Materials of tubes: Carbon Steel(A106/A179/A192/A210)

                                  Stainless Steel(TP304/TP304L ,TP316/TP316L)

                                  Alloy Steel (T11/T22)

Fins Materials: Carbon Steel,

              Stainless Steel(TP304/TP304L,TP316/TP316L, TP409/TP410)

Bare tube size: OD 19.05mm-OD60mm

Fin number: 2/ 4/ 8/ 16/ 18/ 32/ 36 piece per row

Number of fins: 16/20/24/32/40





Description:

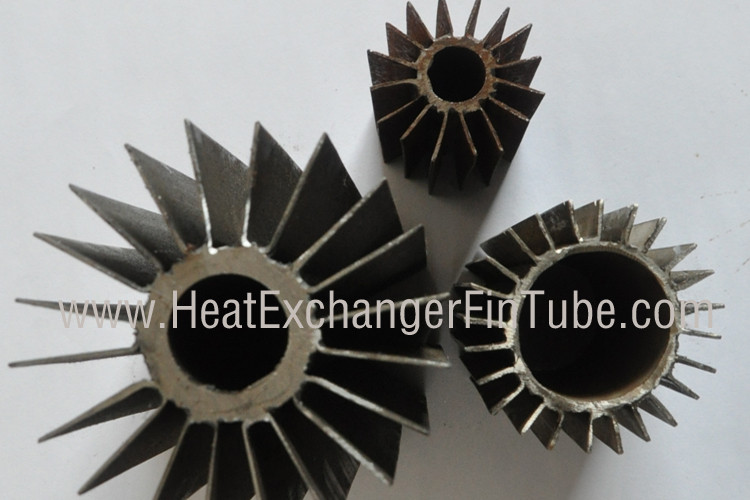

The longitudinal I/L or U shape fins are welded onto the core plain tubes by resistance welding or welding with filler matal (Spot welded).



  1. U bends tubes with longitudinal fins and fintube coils are avaiable for requesting.



  2. Longitudinal fins types: one-piece shape, standard U bent shape, cut & twist, perforated type etc…



  3. The fin channels are welded to the tubes in opposite pairs. Fin height, number of fins and fin thickness can be specified.



  4. Fins can be applied to either OD tube or NB pipe.



Applications:

The longitudinal finned tubes are wildely used in following fields.

1.    Chemical- ,petrochemical-,oil-, and power indudtry

2.    Heat exchanges

3.    Fired heaters

4.    Gas coolers and heaters

5.    Tank heaters.







Competitive Advantage:

1.    Longer working life than others ordinary welding helical fin tubes.

2.    Much safer and energy saving.

3.    Increase the heat transfer rates for viscous liquids.

4.    Perforated fin type used whenever drainage of liquid from fin channels become a problem.

5.    Longitudinal fin tubes are widely used in horizontal heat exchangers.



Fin 36ES Carbon Steel SA106B Longitudinal Finned Tubes , 19mm Height 0



Fin 36ES Carbon Steel SA106B Longitudinal Finned Tubes , 19mm Height 1Fin 36ES Carbon Steel SA106B Longitudinal Finned Tubes , 19mm Height 2
