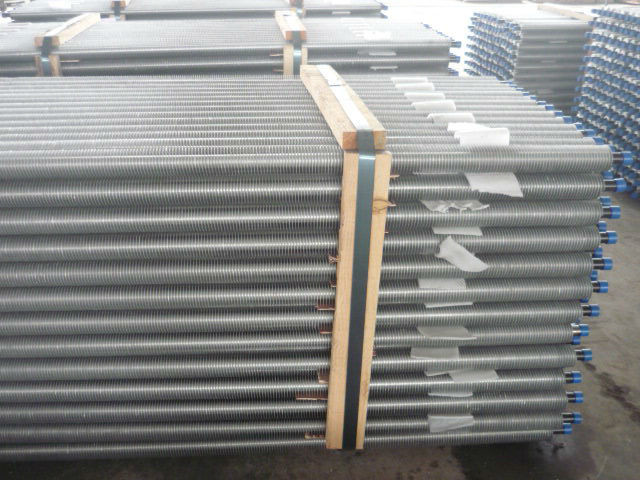

Seamless Cold Finished Mechanical Extruded Bimetallic Heat Exchanger Fin Tube

Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number DR
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Steel frame case sealed by plywoods (2) Solid fumigated wooden box.
Delivery Time Ex-work within 1 month after order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 15,000 Meters.
Product Details
Company Type Manufacturer,Importer & Exporter Fin Tube Type Extruded Fin Tube
Fins Type Solid Or Serrated Tube Material Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc...
Fin Height 16 Mm Max Fin Material Aluminum 1050, 1060,1070,1100,6063
Tube Length No Limit Fining Process Extrusion
High Light

Heat Exchanger Finned tube

,

heat exchanger tubular

Leave a Message
Product Description

seamless cold finished mechanical extruded bimetallic finned tubes​


We have fourteen extrusion fining lines, daily capacity around 15,000 meters, max. base tube OD 2''
 Detail:

ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes
ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
Tube Type:Seamless (Cold Drawn)
Ends:Plain ends or bevel ends.
Surface protection:black painting,anti-rust oil or varnish.

General extrusion production capacity General specifications of Extruded Fin Tubes

Extrusion Facility: 14 finning machines.
Daily capacity up to 15,000 meters.
Extruded fins type: solid plain and serrated.


 Tube OD: 12mm min.~50.8mm(2'') max.
 Tube Length: no limit
 Fin Height: 16 mm max.
 Fin Thickness: appr. 0.4mm/0.5mm/0.6mm
 Fin Pitch: 1.5mm min.



Specifications:

Extruded Bimetallic Finned Tube is combined with two different materials.


 ItemsGeneral MaterialsPopular ASTM Materials
Core Tube Material

Any metallic materials, as carbon steel, low-alloy steel,
stainless steel, brass, copper,
cooper-nickel alloys, aluminum bronze, nickel alloys etc.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
                              A789 S31803/S2205 etc...
3. Copper:UNS12200/UNS14200/UNS70600,
                 CuNi70/30,CuNi 90/10
4. Titanium: B338 Gr 2

Fins Material

1. Aluminum Alloy
2. Copper.

1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper.




All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

1

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 1/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10,

1 1/2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

Please email us for more information.



Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.
Fins Type:
The fins are solid plain or serrated into segments or as your design.
Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.
Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.
Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).
Applications:
The common application fileds are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;
