Air Cooled Heat Exchanger Helical Aluminum L/LL/KL Type Fin Tube API Standard 661
  • name
  • name
  • name
  • name

Air Cooled Heat Exchanger Helical Aluminum L/LL/KL Type Fin Tube API Standard 661

MOQ: N/A
Price: N/A
Standard Packaging: (1)Steel frame case sealed by plywoods with each end capped; (2)Solid fumigated wooden box with each end of capped.
Delivery Period: Ex-work with 1 month on receipt of order.
Payment Method: T/T, L/C
Supply Capacity: Daily capacity up to 5,000 Meters
Detail Information
Product Description
Detail Information
Place of Origin
China, import materials are available
Brand Name
Reliance
Certification
CE,ISO...
Model Number
Type L/LL/KL/G fin tubes
Compamy Type M:
Manufacturer, Importer & Exporter
Fin Type:
Type G Fin Tube / Embedded Fin Tube
Tube Material:
Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc...
Fin Material:
Aluminum, Copper And Steel
Tube Length:
No Limit
Highlight:

finned tube

,

fintube

Product Description

API Standard 661 air cooled heat exchanger helical aluminum finned tubes



Quick Detail:



General L-type production capacity

General specifications of L /LL /KL / G type fin tubes

Finning Facility: 7 finning machines;

Daily capacity up to 5000 meters;

Fin type: Solid plain

Tube OD: 50.8mm max.

Tube Length:  no limit

Fin Height: 16 mm max.

Fin Thickness: generally 0.4mm ~0.6mm

Fin Pitch: 13FPI min.



Surface Protection

Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance Criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).



Accessories

Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).



Packing:

The desiccants are put into each package for continental transportation as well.



Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



Specifications:



L Type Tension Wound Tube is combined with two different materials.



 Items General Materials Popular ASTM Materials
Core Tube Material  Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L

3. Copper:UNS12200/UNS14200/UNS70600,

                 CuNi70/30,CuNi 90/10

4. Titanium: B338 Gr 2
Fins Material

Aluminum & Copper & Steel

1. Aluminum

2. Copper.

3. Steel







All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Pease email us for more information.

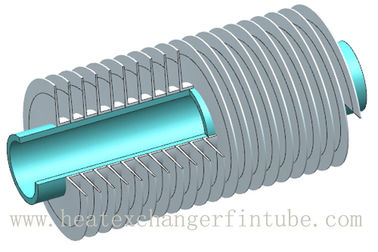

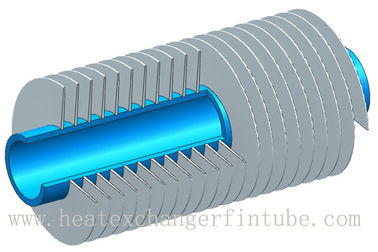

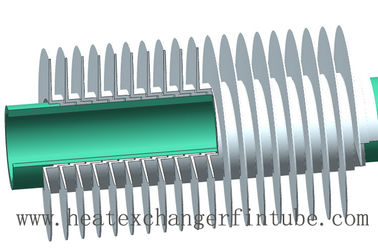

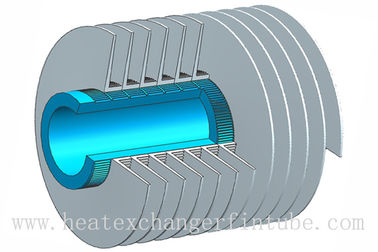

Air Cooled Heat Exchanger Helical Aluminum L/LL/KL Type Fin Tube API Standard 661 0Air Cooled Heat Exchanger Helical Aluminum L/LL/KL Type Fin Tube API Standard 661 1Air Cooled Heat Exchanger Helical Aluminum L/LL/KL Type Fin Tube API Standard 661 2
