Industrial Single Row Flat Fin Tube Axial Movement Metal Expansion Joint

  • Industrial Single Row Flat Fin Tube Axial Movement Metal Expansion Joint
  • Industrial Single Row Flat Fin Tube Axial Movement Metal Expansion Joint
Place of Origin China.
Brand Name Reliance
Certification CE,ISO...
Model Number Rectangular
Minimum Order Quantity N/A
Price N/A
Packaging Details Steel frame case sealed by plywoods with each end capped.
Delivery Time As per quantities of order.
Payment Terms T/T, L/C
Supply Ability Daily capacity around 40 Tons

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Compamy Type Manufacturer, Importer & Exporter Name Metal Expansion Joint
Compensation Types Axial,Angular,Lateral Material No Limit
Highlight

carbon steel finned tubes

,

finned aluminum tubing
Leave a Message
Product Description

Axial movement metal expansion joint in industrial applications



Metal expansion joints (also called compensators) are compensating elements for thermal expansion and relative movement in pipelines, containers and machines.

Industrial Single Row Flat Fin Tube Axial Movement Metal Expansion Joint 0

They consist of one or more metal bellows, connectors at both ends, and tie rods that depend on the application. They are differentiated according to the three basic types of movement: axial, angular and lateral expansion joints.



The axial expansion joint absorbs movement in an axial direction.

Standard connectors of the axial expansion joint are welded ends, fixed flanges and loose flanges. Axial expansion joints are often equipped with a guiding tube on the inside of the metal bellows. This reduces the flow resistance and prevents damage caused by direct contact with the flowing medium.

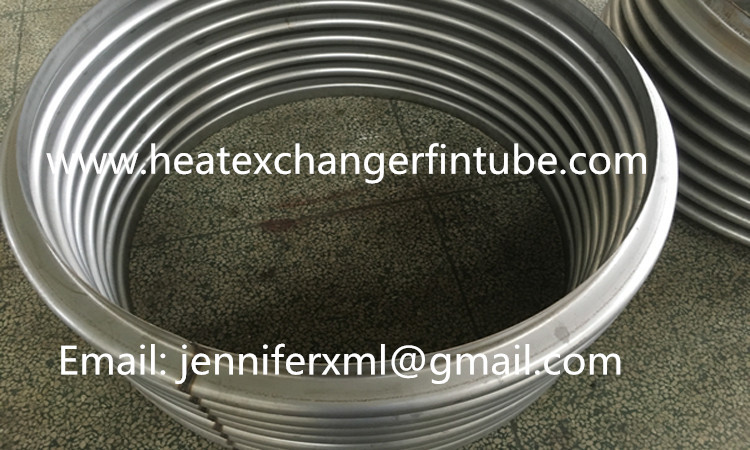

Industrial Single Row Flat Fin Tube Axial Movement Metal Expansion Joint 1

Axial expansion joints, which can absorb large movements, frequently consist of two metal bellows and an inside or outside sleeve that protects against buckling under internal pressure.



For small nominal diameters, protective tubes prevent mechanical damage during installation and operation. Axial expansion joints are suitable for internal and external overpressure.



If pressure is applied to the outside of the metal bellows of axial expansion joints, the expansion joints permit very large axial movements in case of internal pressure in a pipeline.

Industrial Single Row Flat Fin Tube Axial Movement Metal Expansion Joint 2Industrial Single Row Flat Fin Tube Axial Movement Metal Expansion Joint 3
