Twisted Stainless Steel , Finned Copper Tube With Higher Heat Transfer Coefficient
  • name
  • name

Twisted Stainless Steel , Finned Copper Tube With Higher Heat Transfer Coefficient

MOQ: N/A
Price: N/A
Standard Packaging: Steel frame case sealed by plywoods.
Delivery Period: Ex-work within 1 month after order.
Payment Method: T/T,L/C
Supply Capacity: Daily capacity around 40 Tons
Detail Information
Product Description
Detail Information
Place of Origin
China.
Brand Name
Reliance
Certification
CE,ISO...
Model Number
Twisted tube
Compamy Type:
Manufacturer, Importer & Exporter
Name:
Twisted Finned Tube
Tube Material:
CS,SS,copper... No Limit
Fin Material:
Formed Out Of One Piece Of Tube
Tube Length:
No Limit
Advantages:
40% More Heat Transfer Coefficient Than Plain Tubes
Pressure Drop:
Almost Same As Plain Tubes
Assemble:
Mixture Of Plain Tubes And Twisted Tube
Highlight:

carbon steel finned tubes

,

finned aluminum tubing

Product Description

Higher heat transfer coefficient stainless steel,carbon steel, copper twisted fin tubes

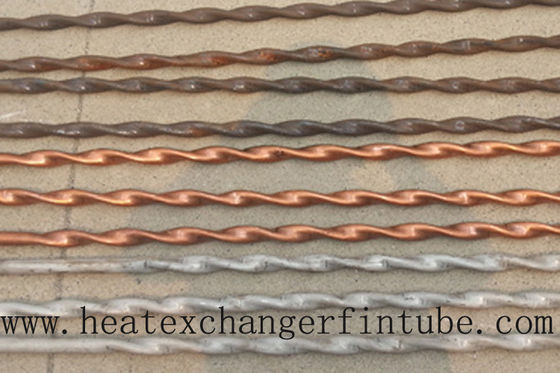

What is twisted tube?

Twisted tube is a kind of enhanced heat transfer tubes and its structure feature is that each cross section on is oval, when assembled heat exchanger they can be mixed bundles. That is, the mixture of twisted tube and plain tube, and also can be a pure twisted tube bundles.

Twisted Stainless Steel , Finned Copper Tube With Higher Heat Transfer Coefficient 0



Seamless steel twisted tubes used for producing heat exchangers are complet one tube without any joints. And the heat transfer coefficient of the twisted tubes is 40% higher than the plain tubes, while the pressure drop is almost same.



Twisted Stainless Steel , Finned Copper Tube With Higher Heat Transfer Coefficient 1







Mechanical characteristics:



Tubes are firmly supported while allowing a well-distributed longitudinal flow along the tubes. While stresses and other mechanical considerations are similar to conventional baffled heat exchangers, the twisted tube bundles provide absolute resistance to vibration. Repair is the same or similar as for conventional heat exchangers.



Material:

Tubes can be made in a variety of materials: carbon steel , stainless steel ,monel, brass, nickel etc.



Twisted Stainless Steel , Finned Copper Tube With Higher Heat Transfer Coefficient 2





Tags:

carbon steel finned tubes,

finned aluminum tubing,

Helical Finned Tube
