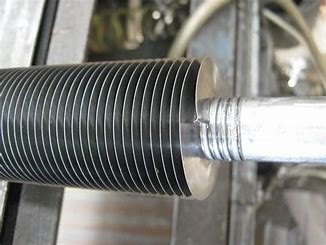

5/8 Helicoidal Groove Embedded Fin Tube PLC Controlled
  • name

5/8 Helicoidal Groove Embedded Fin Tube PLC Controlled

MOQ: N/A
Price: N/A
Standard Packaging: Solid fumigated wooden box loaded into 20' Container.
Delivery Period: Ex-work within 50 days on receipt of order.
Payment Method: T/T, L/C
Supply Capacity: Normally ex-work within 7 weeks for 1 set and large quantities shall be discussed.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Reliance
Certification
CE,ISO...
Model Number
Reliance-1518
Company:
Manufacturer, Importer & Exporter
Fin Tube Type:
Embedded Fin Tube Or G Type Fin Tube
Fins Type:
Solid,plain
Origin:
China
Nearest Port:
Shanghai Port,China
Fin Materials:
Alu & Copper
Highlight:

Helicoidal Groove Embedded Fin Tube

,

5/8 Helicoidal Embedded Fin Tube

,

PLC Controlled Embedded Fin Tube

Product Description

Embedded  G Fin Type , Helicoidal Groove Cooling Fin Tube



PS: This is the product introduction of G type Embedded fin tubes.



Quick Details

Name

Embedded Fin Tube Machine

 Brand/Mode No   Reliance/ Mode No:1518
Tube Material

Seamless steel tubes(CS,SS,AS)

Welded steel tubes(CS,SS)

Copper/Brass/Brone

Fins

Material

  Alu.1060-O,  Alu. 1060-H14

  Alu 1100-O, Alu. 1050

  Copper



General description of G-Type finning machine.

1. Embedded Machine Mode No: Reliance-1518(Our internal design No.)

2. Embedded Machine Power Output: 380V/50HZ (Chinese Standard).

3. The motors of export embedded finning machine are supplied upon clients’ requests.



One complete set of Extruded Finning Machine consisting  following:

1. Finning head

2. PLC controlled power box

3. Finning input racks

4. Finning output racks

5. Technical know-how(Operation Manual in English)



Dimensions Data are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.



Service After Sales

1. Technical support

2. Operation training at your site or in Reliance's Plant or both

3. Information on maximun production criteria

4. Reference charts

5. Specifications for tube and fin strips.
