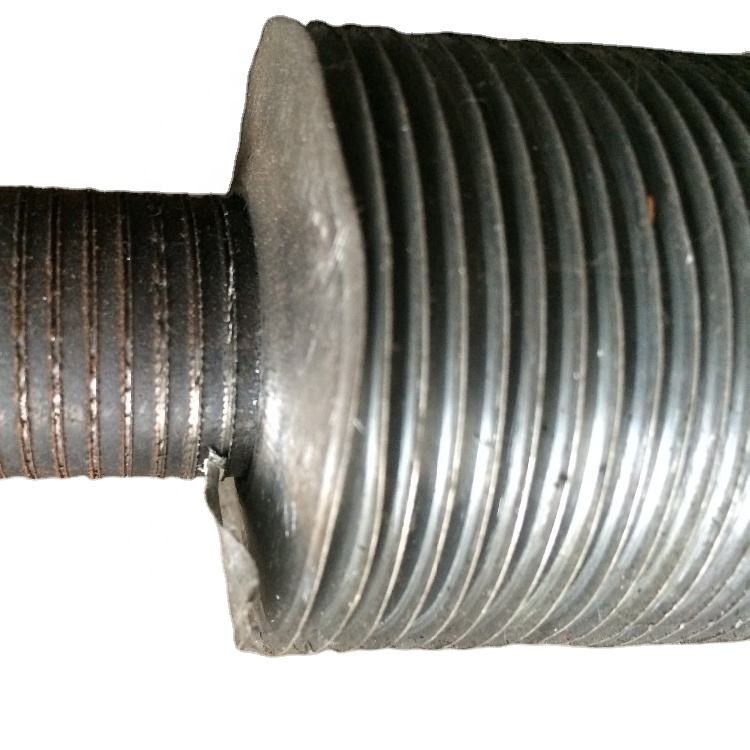

Grooved Embedded Radiator Fin Tube Aluminum Extruded

Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number G Fin
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Steel frame case sealed by plywoods with each end capped;(2) Solid fumigated wooden box with each end capped.
Delivery Time Ex-work with 5 weeks after Order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 3,500 Meters

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Compamy Type Manufacturer, Importer & Exporter Fin Tube Type Grooved Fin Tube,G-Fin Tube
Fins Type Solid, Plain Accessories Tube Support Box, Clamp Or Spacer Box
High Light

Embedded Radiator Fin Tube

,

Grooved Embedded Radiator Fin Tube

,

Aluminum Extruded Embedded Fin Tube

Leave a Message
Product Description

Embedded finned tubes with stainless steel seamless tube and aluminum 1100 fins



Base Tube Material stainless steel, carbon steel, copper alloy, alloy steel etc
Fin Material Aluminum, Copper Alloy, Stainless Steel, Carbon Steel
Fin Tube Type 1. Copper fin tube→copper fin copper tube, aluminum fin copper tube
2. Spiral fin tube→steel fin steel tube
3. Extruded fin tube→aluminum fin steel tube
4. Stainless fin tube→stainless fin steel tube
5. High frequency welded fin tube→stainless fin steel tube, steel fin steel tube
6. Aluminum fin tube→aluminum fin steel tube
Base Tube OD 12.7~18mm
Fin tube Max design temperature <450°C
Fin depth 0.5~3 mm
Product processing Extruded, Embedded, High-Frequency Welding etc.
Package In bundles, plywood cases, wooden cases with the water-proof package, etc.
Application Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchanger, superheater, Boiler etc.



G Fin Fluted Depth:

Appr. 0.4mm.



Surface Protection:

Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance criteria:

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions.



Accessories

Tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).



Delivery condition:

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube.

The desiccants are put into each package for continental transporation as well.



Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



Specifications:



Grooved G type Finned Tubes are combined with two different materials.



Items General Materials Popular ASTM Materials
Core Tube Material

  carbon steel, ow-alloy steel,

  stainless steel, brass, copper,

  cooper-nickel alloys,

  aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,

                              A789 S31803/S2205 etc...

3. Copper:UNS12200/UNS14200/UNS70600,

                 CuNi70/30,CuNi 90/10

Fins Material

1. Aluminum

2. Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.



All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.
