Aluminum Copper Embedded Fin Tube Smls Grooved Electro Spray Treatment

Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number G Fin
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Steel frame case sealed by plywoods with each end capped;(2) Solid fumigated wooden box with each end capped.
Delivery Time Ex-work with 5 weeks after Order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 3,500 Meters
Product Details
Compamy Type Manufacturer, Importer & Exporter Fin Tube Type Grooved Fin Tube,G-Fin Tube
Fins Type Solid, Plain Origin China
Nearest Port Shanghai Port, China Recent Buyer From Iran In Jan Of 2015
Accessories Tube Support Box, Clamp Or Spacer Box
High Light

Aluminum Embedded Fin Tube Copper

,

Electro Spray Treatment Embedded Fin Tube

,

Smls Grooved Embedded Fin Tube

Leave a Message
Product Description

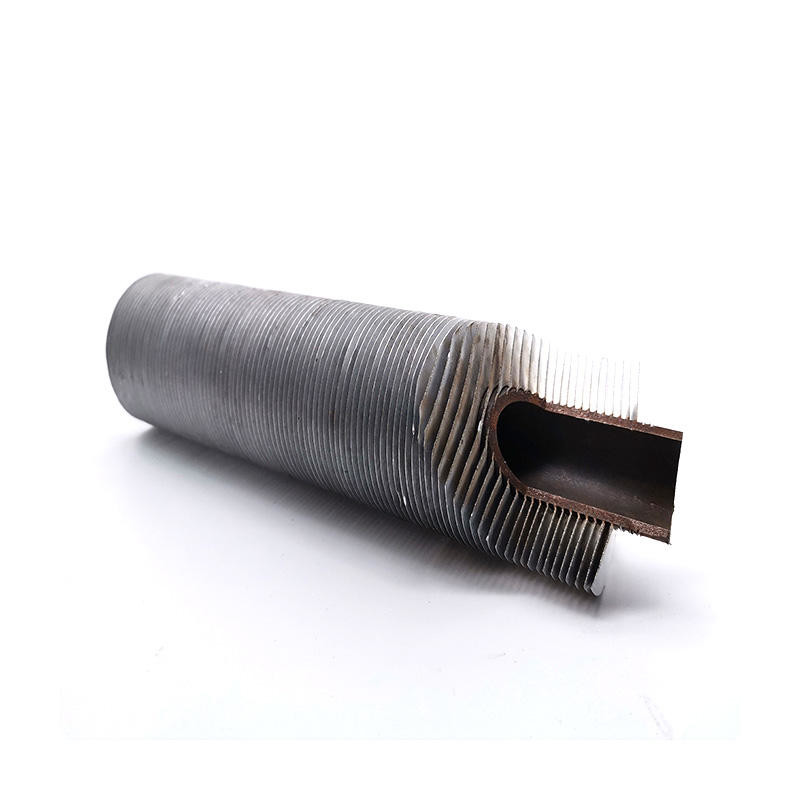

Aluminum & Copper Fins Are Embedded Into SMLS Stainless Steel Tube of TP304 / TP304L​



Energy Transfer embedded finned tubing offers exceptional thermal efficiency at higher temperature ranges with solid fin-to-tube contact. Fins are mechanically locked into a helical groove in the outside of the tube. Rollers press displaced metal from the groove against the base of the fin to form a lasting metal-to-metal bond.







Quick Detail:

Finning Facilities: 5 finning machines.

Daily capacity up to 3500 meters.

Tube OD: 50.8mm(2'') max.

Tube Length: 18,000mm max.

Fin Height: 16.5 mm max.

Fin Thickness: generally 0.4mm ~0.6mm

Fin Pitch: 2.1 mm (12FPI) min.



Standard ASME SA213/ASTM A213,ASME SA106/ASTM A106,ASME SA179/ASTM A179,ASTM B111
Material carbon steel, stainless steel, copper alloy, Aluminum steel; other materials as customer request
Fin produce type 1. Extruded fin tube
2. Serrated fin tube
3. L Type fin tube
4. G Type fin tube
5. LL Type fin tube
6. H Type fin tube
7. Sprial fin tube
8. High-frequency welding
Tube OD 25mm~165mm(as per as customer request)
Fin pitch 1~50mm(as per as customer request)
Fin height 5~50mm(as per as customer request)
Fin thickness 0.5~45mm(as per as customer request)
Application Heat exchanger,Air Cooler,Charge Air Chiller, Condenser,Evaporator, Fluid Cooler, Gas Cooler,Oil Cooler, Radiator, Refrigeration etc...





Manufacturing process

The aluminum fin strip is tension wound and placed into a groove cut into the tube.



G Fin Fluted Depth:

Appr. 0.4mm.



Surface Protection:

Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance criteria:

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions.



Accessories

Tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).



Delivery condition:

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube.

The desiccants are put into each package for continental transporation as well.



Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



Specifications:



Grooved G type Finned Tubes are combined with two different materials.



Items General Materials Popular ASTM Materials
Core Tube Material

  carbon steel, ow-alloy steel,

  stainless steel, brass, copper,

  cooper-nickel alloys,

  aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,

                              A789 S31803/S2205 etc...

3. Copper:UNS12200/UNS14200/UNS70600,

                 CuNi70/30,CuNi 90/10

Fins Material

1. Aluminum

2. Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.



All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.





Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 5 finning machines, daily capacity up to 3,500 meters.
  2. The Grooved G type Finning Machines are designed and assembled by ourselves and we can offer you finning machine and all accessories etc...
  3. The contact of manufacturing Grooved fin tubes is designed for a high wall temperature of up to 350°C.
