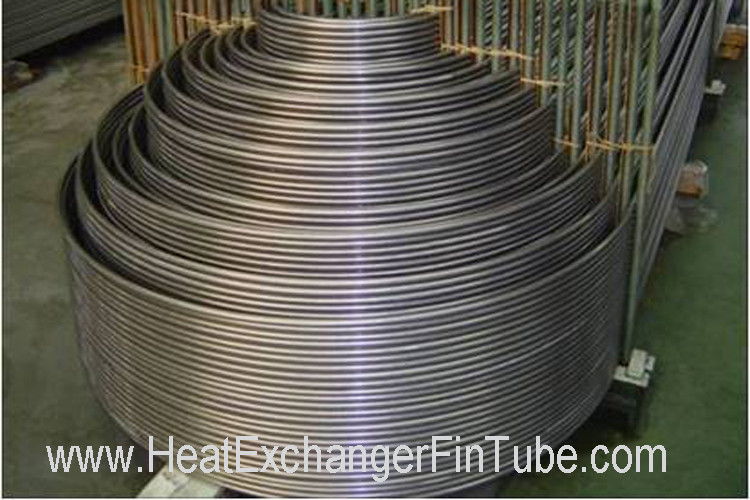

High Precision Heat Exchanger U Tube for superheater / economizer

Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number U bend tube
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Steel frame case sealed by plywoods (2) Solid fumigated wooden box.
Delivery Time Normally ex-work with 45 days.
Payment Terms T/T, L/C
Supply Ability maximum OD76mm X8mm Thickness

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Company Type Manufacturer,Importer & Exporter Nearest Port Shanghai Port, China
High Light

Heat Exchanger Tubular

,

heat exchanger tubing

Leave a Message
Product Description

Stainless Steel U Bend Tube,Carbon Steel U Tube,heat exchanger U fin tube,boiler U bend tube,U tube bundles,U tube coils



Quick Detail:



Stainless Steel U Bend Tubes are manufactured in accordance with design and drawings.Bending radius, C to C distance and straight leg length are required for U bending tubes.



Tube OD: OD76mm max.

Tube wall thickness: 0.5 mm to 8 mm

Bending Radius: From 1.5 mm To 1500mm

Developed length: 25 meters Max.





Description:



General Manufacturing process: U Bend Tubes are manufactured in accordance with design and drawings. Bends portation could be heat treated as per clients’ requirements followed by hydrostatic or pneumatic tests if required.



Basic parameters for U bent tubes:

  1. The integral low fins on straight portions are allowed; please refer to our low fin tube data sheet.
  2. Marking is possible after bending on straight portions of U-bending Tube.
  3. The manufacturing process of bare tubes is cold drawn or cold rolled.
  4. The quality of bare tubes before bending is annealed, pickled and bright annealed.
  5. Acceptance criteria: inspection test plans, design and drawings, layout check.
  6. The U bent tubes are oiled or varnished for rust preventation and stenciled at ends.
  7. Heat Treatment: stress relieved after U-Bending (Bending area plus 300mm of each leg).
  8. Delivery condition: Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends. The desiccants are put into each package for continental transportation as well.



Applications:

  1. For pressure vessels including heat exchangers
  2. For boiler and boiler-related equipment,such as superheaters and economizers



Specifications:



Core tube: Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc…



S/r

Carbon /alloy steel tubes and pipes for heat exchangers and boilers

1

Standard specification for carbon steel seamless tubes/pipe for temperature services (ASTM A 106 Gr A/B/C)

2

Standard specification for carbon steel seamless tubes/pipe for heat exchangers and condensers (ASTM A 179)

3

Standard specification for carbon steel boiler tubes/pipes for high pressure services(ASTM A192)

4

Standard specification for seamless carbon steel boiler and superheater tubes (ASTM A210 A1/C)

5

Standard specification for seamless alloy steel boiler and superheater tubes (ASTM A213 T2/T11/T12/T22)

6

Standard specification for seamless alloy steel pipes for low temperature services (ASTM A333 Gr. 1/6)

7

Standard specification for seamless carbon and alloy steel tubes  for low temperature services  (ASTM A334 Gr. 1/6)

8

Standard specification for seamless Ferrite alloy steel pipes for low temperature services (ASTM A335 P11/P12/P22)

9

Standard specification for seamless carbon steel tubes for boilers and superheaters  (BS3059)

10

Standard specification for seamless alloy steel tubes for boilers, pipelines, pressure vessels for temperature up to 600 degree (DIN 17175)





Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 3 bending finning machine with maximum OD76mm X8mm Thickness.
  2. Shanghai Port is our nearest seaport and airport, less than 2 hours’ drive away from our workshop, convenient transportation.
  3. Tube stock availability for general grade of carbon steel and stainless steel
  4. Engineering quick know-how support.

High Precision Heat Exchanger U Tube for superheater / economizer 0High Precision Heat Exchanger U Tube for superheater / economizer 1High Precision Heat Exchanger U Tube for superheater / economizer 2
