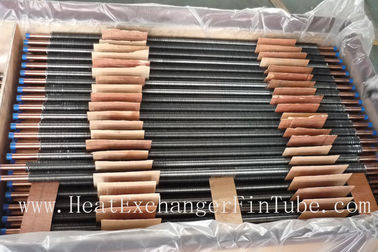

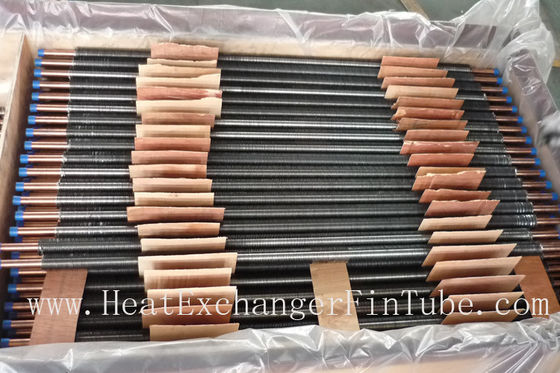

C12200 / TP2 Copper Finned Tube , Tension Wrapped L Type Condenser Tube
Place of Origin | China, import materials are available |
---|---|
Brand Name | Reliance |
Certification | CE,ISO... |
Model Number | L TYPE |
Minimum Order Quantity | N/A |
Price | N/A |
Packaging Details | (1)Steel frame case sealed by plywoods with each end capped; (2)Solid fumigated wooden box with each end of capped. |
Delivery Time | Ex-work with 1 month on receipt of order. |
Payment Terms | T/T, L/C |
Supply Ability | Daily capacity up to 5,000 Meters |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCompamy Type M | Manufacturer, Importer & Exporter | Fin Tube Type | L Type Fin Tube,Tension Wound L Type Fin Tube |
---|---|---|---|
Fins Type | Solid,Plain | Origin | China |
Nearest Port | Shanghai Port, China | Recent Buyer | From USA In Dec Of 2014 |
Accessories | Tube Spacer Box,Clamp & Spacer Box | ||
High Light | fintube,aluminum fin tube |
C12200 / TP2 Cooper Tube , OD15.88X1.24WT Tension Wrapped L Type Cooper Condenser Tube
ASTM B111/ B111M : Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock
Quick Detail:
General L-type production capacity |
General specifications of L type fin tubes |
Finning Facility: 7 finning machines; Daily capacity up to 5000 meters; Fin type: Solid plain |
Tube OD: 16mm Min~50.8mm max. Tube Length: 18,000mm max. Fin Height: 16.5 mm max. Fin Thickness: generally 0.4mm ~0.6mm Fin Pitch: 2.1 mm (12FPI) min. |
Manufacturing process: The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface.
Surface Protection
Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.
Acceptance Criteria
API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).
Accessories
Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).
Delivery Condition
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of L Type Tension Wound Finned Tube.
Packing:
The desiccants are put into each package for continental transportation as well.
Applications:
The common application fields are:
- Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
- High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
- The petroleum, chemical and petrochemical industries;
- The food processing and refrigeration industries;
- Natural gas treatment;
Specifications:
L Type Tension Wound Tube is combined with two different materials.
Items | General Materials | Popular ASTM Materials |
Core Tube Material | Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys. |
1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B 2. Stainless Steel: TP304/304L,TP316/TP316L 3. Copper:UNS12200/UNS14200/UNS70600, CuNi70/30,CuNi 90/10 4. Titanium: B338 Gr 2 |
Fins Material |
Aluminum & Copper. |
1. Aluminum(Alu.1100,Alu.1060) 2. Copper. |
All dimensions are in Inches and specification upon your requests. |
|||
Tube OD |
Fin Height |
Fin Thickness |
Fins per Pitch |
5/8 |
3/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
3/4 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
1 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
1 1/4 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
1 1/2 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
Pease email us for more information. |
Competitive Advantage:
- We have more than 10,000 square meters workshop, including 7 finning machines, daily production capacity up to 5,000 meters.
- The finning machines are designed and assembled by ourselves (Reliance) and we can offer you finning machines and all accessories etc...
- This method of manufacturing L tension type enables us to place the finning on a very thin-walled tube with is particularly desirable when using high value alloys (titanium, stainless, copper, nickel).The tube can withstand a temperature of up to 150°C without the risk of atmospheric corrosion or thermal stress.
- L TYPE fin tubes provide contact area between the fin strip and the tubes surface and protect the tube wall from atmosphere corrosion. This L TYPE design is much economical than LL, KL, even G-embedded type.
