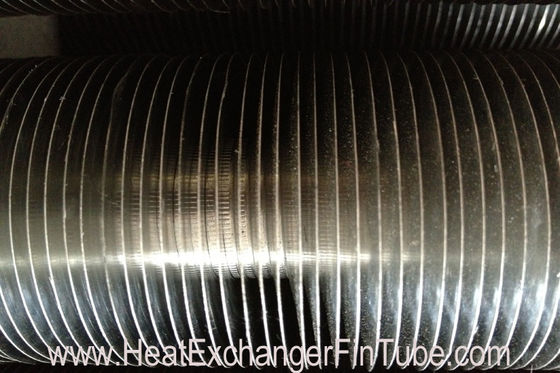

Type KL footed helical aluminum 1060 heat exchanger finned tube, seamless stainless steel

  • Type KL footed helical aluminum 1060 heat exchanger finned tube, seamless stainless steel
  • Type KL footed helical aluminum 1060 heat exchanger finned tube, seamless stainless steel
Place of Origin China, import materials are available
Brand Name Reliance
Certification CE,ISO...
Model Number TYPE KL footed
Minimum Order Quantity N/A
Price N/A
Packaging Details (1)Steel frame case sealed by plywoods with each end capped; (2)Solid fumigated wooden box with each end of capped.
Delivery Time Ex-work with 1 month after order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 5,000 meters

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fin Tube Type Tension Wound Type KL Fin Tube Tube Material Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc...
Fin Material Aluminum And Copper Fin Thickness 0.28mm~0.6mm
Tube Length No Limit Min Tube OD 0.5''
High Light

fintube

,

aluminum fin tube
Leave a Message
Product Description

Type KL footed helical aluminum 1060 heat exchanger finned tube, seamless stainless steel



ASTM A213 / A213M : Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes



ASTM A312/ A312M : Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes



ASTM A269/ A269M : Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service



Quick Detail:



General KL-type production capacity

General specifications of KL type fin tubes

Finning Facility: 5 finning machines;

Daily capacity up to 5000 meters;

Fin type: Solid plain

Tube OD: 12.7mm Min~50.8mm max.

Tube Length: no limit

Fin Height: 16.5 mm max.

Fin Thickness: generally 0.28mm ~0.6mm

Fin Pitch: 2.1 mm (12FPI) min.



Manufacturing process:  The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface.





Surface Protection

Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance Criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).



Accessories

Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).



Delivery Condition

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of L Type Tension Wound Finned Tube.



Packing:

The desiccants are put into each package for continental transportation as well.



Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Pease email us for more information.





Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 7  finning machines, daily production capacity up to 5,000 meters.
  2. The finning machines are designed and assembled by ourselves (Reliance) and we can offer you finning machines and all accessories etc...
  3. This method of manufacturing L tension type enables us to place the finning on a very thin-walled tube with is particularly desirable when using high value alloys (titanium, stainless, copper, nickel).The tube can withstand a temperature of up to 150°C without the risk of atmospheric corrosion or thermal stress.
  4. Type KL footed helical aluminum 1060 heat exchanger finned tube, seamless stainless steel 0
