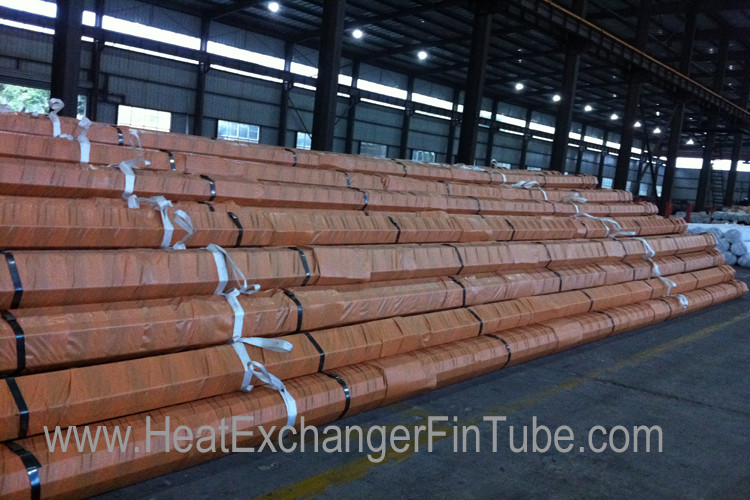

Petrochemical industry Seamless Stainless Steel Tube / Pipe A213 TP316Ti

Place of Origin China
Brand Name Reliance
Certification CE,ISO...
Minimum Order Quantity N/A
Packaging Details Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time EX-WORK within 4~5 weeks after order
Payment Terms T/T, L/C

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel Technique Seamless
Product Name Seamless Stainless Steel Tube Delivery Condition Pickled / Bright Annealed
High Light

seamless stainless steel pipe

,

stainless steel seamless pipe

Leave a Message
Product Description

Stainless Steel Seamless Tube A213 TP316Ti , 0.89mm, 1.24mm, 1.65mm,



Standard: ASTM A213/ASME SA213, ASTM A789, ASME SA789 , SB677

More Material: TP304/304L , TP310S/310H, TP316/316L,TP316Ti, TP317/317L, TP321/321H, TP347/347H, 904L

OD:6mm-152mm

 Thickness: 0.6mm-30mm



Heat Exchanger TP304 / 304L TP310 /310S TP316 / 316L TP317  /317L TP321 /321H TP347H  UNS NO8904 / 904L  Stainless Steel Seamless Tube ASTM A213 / ASME SA213  ASTM B677 / ASME SB677





SIZE RANGE :



STEEL TYPES

SIZE RANGE

Stainless steel seamless pipe&tube

OD: 6-609.6mm        WT: 0.6-50mm



MAIN STEEL TYPE AND GRADE :



PRODUCTS

TYPICAL STEEL GRADE

Austenitic

TP304,TP304L,TP304H,TP316,TP316L,TP316H,TP316Ti

TP321,TP321H,TP347H,904L,TP310H,TP310S,TP317,TP317L

Duplex / Super Duplex

S31803, S32205, S32750, S32760, S31500, S32304, S31254



MAIN PRODUCTION STANDARDS:



STANDARD TYPE

STANDARD

EN

EN10216-5 , EN10216-2

DIN

DIN 17456 , DIN 17458

ASTM

ASTM A312, A213, A269, A511, A789, A790 ETC

GOST

GOST 9941 , GOST 5632

JIS

JIS G3459 , JIS G3463

GB

GB/T14975,GB/T14975, GB13296, GB5310, GB9948





Stainless Steel Seamless Pipe/ Tube:


1. A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include “Logo(YHSS)+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.




PACKING: By Bundle / By Wooden Yoke /  By Wooden Case



APPLICATIONS FIELD :





1. Pipe and Tubes for petrochemical industry

2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry



Quality Control in our group :

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections
