0.5mm to 8mm Thin wall Seamless Stainless Steel Tube / tubing , ASME SA213 TP316 / 316L.

Certification
China Jiangyin Reliance International Trade Co., Ltd certification
Customer Reviews
Reliance has looked after us really well , and most because of your good service and products quality.

—— New Zealand

You did show a full professional way of doing business industrial deal. Im very happy that i have the opportunity to cooperate with u and ur company.

—— Lebanon

Quick response,good price, excellent delivery date and service, of course, the best quality.

—— Mexico

I'm Online Chat Now

0.5mm to 8mm Thin wall Seamless Stainless Steel Tube / tubing , ASME SA213 TP316 / 316L.

0.5mm to 8mm Thin wall Seamless Stainless Steel Tube / tubing , ASME SA213 TP316 / 316L.
0.5mm to 8mm Thin wall Seamless Stainless Steel Tube / tubing , ASME SA213 TP316 / 316L.

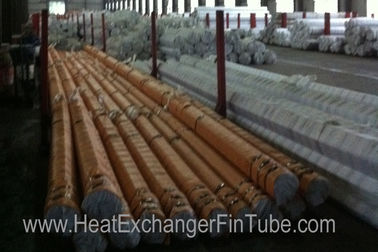

Large Image :  0.5mm to 8mm Thin wall Seamless Stainless Steel Tube / tubing , ASME SA213 TP316 / 316L.

Product Details:

Place of Origin: China
Brand Name: Reliance
Certification: CE,ISO...

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: EX-WORK within 4~5 weeks after order
Payment Terms: T/T, L/C
Detailed Product Description
Material: Stainless Steel Technique: Seamless
Product Name: Seamless Stainless Steel Tube Delivery Condition: Pickled / Bright Annealed
High Light:

seamless stainless steel pipe

,

stainless steel seamless tubes

Pickled / Bright Annealed Stainless Steel Seamless Tube , ASME SA213 TP316 / 316L



Specification:

ASME SA213/A213: Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.

ASTM A249 / A249M: Welded Austenitic Steel Boiler,Superheater Heat-Exchanger & Condenser Tubes.



More Standard:DIN 17456 , DIN 17458, EN10216-5,  GOST 9940-81, GOST 9941-81, JIS-G3463,...



American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H,  TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...

Europen Standard

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

Russia Standard

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ





Size Range:

Production

 Outside Diameter

Wall Thickness

BoilerTube

6.00mm to 101.6mm

0.5mm to 8mm





Final Finishing

Solution Annealed & Pickled/Bright Annealed.





Type of Tubes:

U-bend & Straight.



Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
  •
