Aluminum 1100 / Stainless Steel Seamless Embedded Fin Tube OD 50.8mm

Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number G Fin
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Steel frame case sealed by plywoods with each end capped;(2) Solid fumigated wooden box with each end capped.
Delivery Time Ex-work with 5 weeks after Order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 3,500 Meters

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Compamy Type Manufacturer, Importer & Exporter Fin Tube Type Grooved Fin Tube,G-Fin Tube
Fins Type Solid, Plain Accessories Tube Support Box, Clamp Or Spacer Box
High Light

Steel Fin Tube

,

Finned Tubing

Leave a Message
Product Description

Embedded finned tubes with stainless steel seamless tube and aluminum 1100 fins



Quick Detail:



Finning Facilities: 7 finning machines.

Daily capacity up to 7,000 meters.



Tube OD: 50.8mm(2'') max.

Tube Length: 18,000mm max.

Fin Height: 16.5 mm max.

Fin Thickness: generally 0.4mm ~0.6mm

Fin Pitch: 2.1 mm (12FPI) min.





Manufacturing process

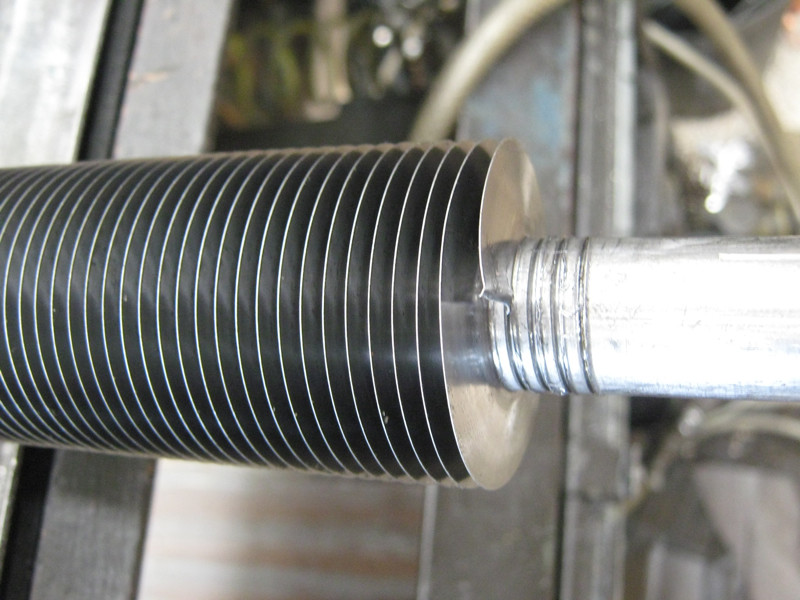

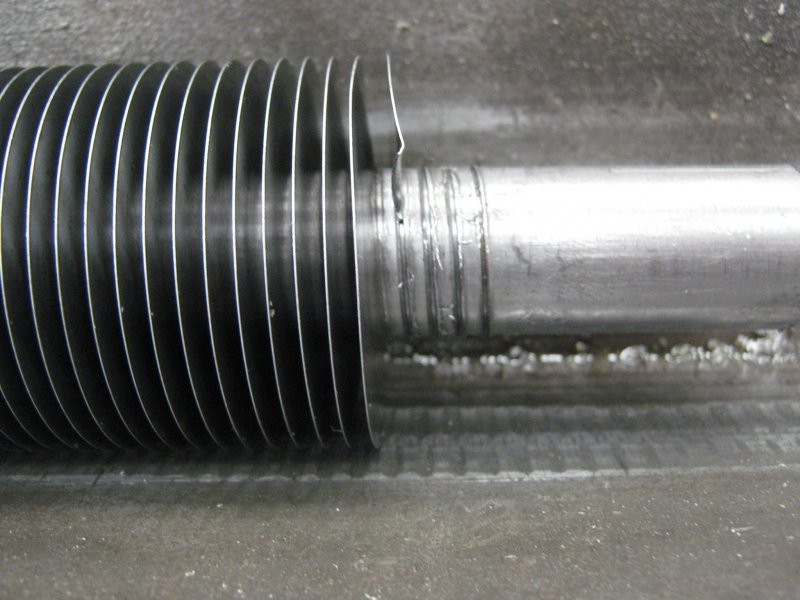

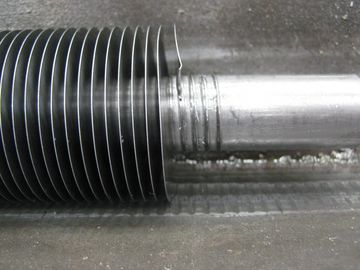

The aluminum fin strip is tension wound and placed into a groove cut into the tube.



G Fin Fluted Depth:

Appr. 0.4mm.



Surface Protection:

Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance criteria:

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions.



Accessories

Tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).



Delivery condition:

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube.

The desiccants are put into each package for continental transporation as well.



Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



Specifications:



Grooved G type Finned Tubes are combined with two different materials.



Items General Materials Popular ASTM Materials
Core Tube Material

  carbon steel, ow-alloy steel,

  stainless steel, brass, copper,

  cooper-nickel alloys,

  aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,

                              A789 S31803/S2205 etc...

3. Copper:UNS12200/UNS14200/UNS70600,

                 CuNi70/30,CuNi 90/10

Fins Material

1. Aluminum

2. Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.



All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.
