Grooved G Type Embedded Fin Tube , 1060 H14 Aluminum Finned Tubes

Grooved G Type Embedded Fin Tube , 1060 H14 Aluminum Finned Tubes
Grooved G Type Embedded Fin Tube , 1060 H14 Aluminum Finned Tubes

Large Image :  Grooved G Type Embedded Fin Tube , 1060 H14 Aluminum Finned Tubes

Product Details:

Place of Origin: China
Brand Name: Reliance
Certification: CE,ISO...
Model Number: G Fin

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Price: N/A

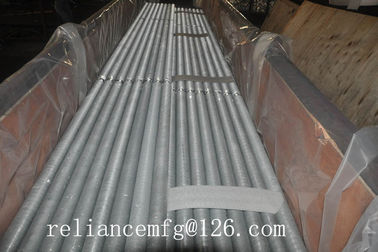

Packaging Details: Steel frame case sealed by plywoods or solid fumigated wooden box.
Delivery Time: Ex-work with 1 month after order.
Payment Terms: T/T, L/C
Supply Ability: Total 7 machines and daily capacity up to 5,000 meters.
Detailed Product Description
Company Type: Manufacturer, Im. & Ex. Fins Type: Grooved Fin Tube,G-Fin Tube
Tube Material: Carbon Steel,stainless Steel, Copper Etc... Fin Material: Aluminum, Copper, Steel
Tube Length: No Limit Fin Height: 16mm Max.
Packing: Steel Frame Case Exporting Port: Shanghai
High Light:

Steel Fin Tube

,

Finned Tubing

Aluminum 1060 H14 high finned embedded aluminum finned tubes





Quick Detail:



We have 7 sets G fin Finning machines and daily capacity up to 5000 meters.



The contact of manufacturing Grooved fin tubes is designed for a high wall temperature of up to 350°C.



Specifications:



Grooved G type Finned Tubes are combined with two different materials.

Items General Materials Popular ASTM Materials
Core Tube Material

Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.



1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,

                              A789 S31803/S2205 etc...

3. Copper:UNS12200/UNS14200/UNS70600,

                 CuNi70/30,CuNi 90/10

Fins Material

1. Aluminum Alloy

2. Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.



All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.





Manufacturing process

The aluminum fin strip is tension wound and placed into a groove cut into the tube with appr. 0.4mm fluted depth.



Surface Protection of Plain Ends

Both ends of Grooved G type Fin Tubes shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).



Accessories

Tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).



Delivery condition:

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube.

The desiccants are put into each package for continental transporation as well.





Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;
