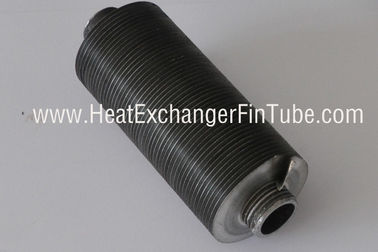

Aluminum 1050 Fins Type G Base Radial Aluminum Cooling Fin Tube

Aluminum 1050 Fins Type G Base Radial Aluminum Cooling Fin Tube
Aluminum 1050 Fins Type G Base Radial Aluminum Cooling Fin Tube Aluminum 1050 Fins Type G Base Radial Aluminum Cooling Fin Tube Aluminum 1050 Fins Type G Base Radial Aluminum Cooling Fin Tube Aluminum 1050 Fins Type G Base Radial Aluminum Cooling Fin Tube

Large Image :  Aluminum 1050 Fins Type G Base Radial Aluminum Cooling Fin Tube

Product Details:

Place of Origin: China.Imported materials are available.
Brand Name: Reliance
Certification: CE,ISO...
Model Number: G Fin

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Price: N/A
Packaging Details: (1) Steel frame case sealed by plywoods with each end capped;(2) Solid fumigated wooden box with each end capped.
Delivery Time: Normally Ex-work with 1 month
Payment Terms: T/T, L/C
Supply Ability: Daily capacity up to 3,500 Meters
Detailed Product Description
Compamy Type: Manufacturer, Importer & Exporter Fin Tube Type: Grooved Fin Tube,G-Fin Tube
Tube Material: Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc... Fin Material: Aluminum, Copper And Steel
Accessories: Tube Support Box, Clamp Or Spacer Box Fin Tube Length: No Limit
Fin Pitch: 12FPI Min
High Light:

Steel Fin Tube

,

Finned Tubing

Aluminum 1050 fins type G base radial aluminum cooling fin tube​



Quick Detail:



G fin Finning lines: 7 finning machines.

Daily capacity up to 7,000 meters.



Tube OD: 50.8mm(2'') max.

Tube Length: no limit

Fin Height: 16.5 mm max.

Fin Thickness: generally 0.4mm ~0.6mm

Fin Pitch: 2.1 mm (12FPI) min.



Manufacturing process

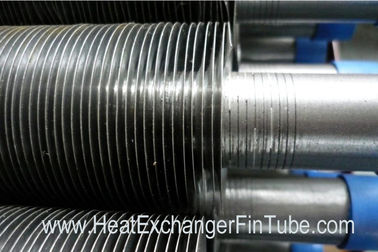

The aluminum fin strip is tension wound and placed into a groove cut into the tube with appr. 0.4mm fluted depth.



Surface Protection of Plain Ends

Both ends of Grooved G type Fin Tubes shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).



Accessories

Tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).



Delivery condition:

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube.

The desiccants are put into each package for continental transporation as well.





Applications:



The common application fields are:

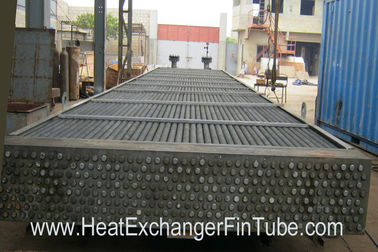

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



Specifications:



Grooved G type Finned Tubes are combined with two different materials.



Items General Materials Popular ASTM Materials
Core Tube Material

Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.



1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,

                              A789 S31803/S2205 etc...

3. Copper:UNS12200/UNS14200/UNS70600,

                 CuNi70/30,CuNi 90/10

Fins Material

1. Aluminum Alloy

2. Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.



All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Please email us for more information.





ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service

ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes

Steel Grade: Grade A1; Grade C

Delivery Condition: Annealed, Normalized, Normalized and Tempered
