13FPI OD1
  • name

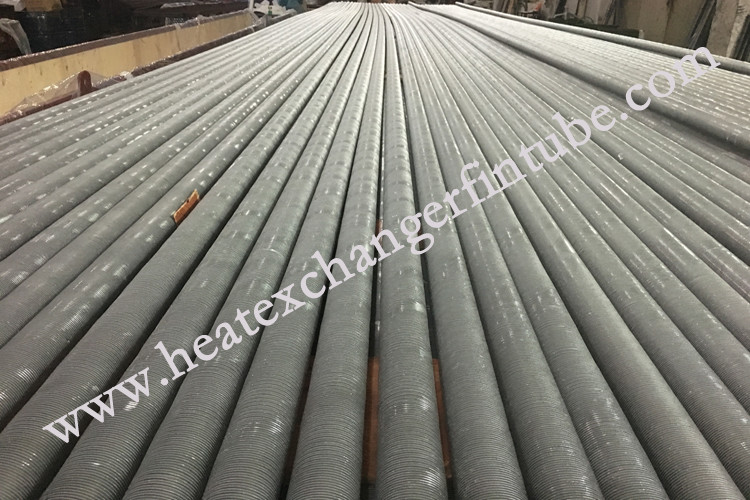

13FPI OD1" Aluminum Finned Tubes For Heat Exchangers Units

MOQ: N/A
Price: N/A
Standard Packaging: (1) Steel frame case sealed by plywoods with each end capped. (2) Solid fumigated wooden box with each end capped.
Delivery Period: Ex-work within 1 month on receipt of order.
Payment Method: T/T, L/C
Supply Capacity: Daily capacity up to 3,000 Meters.
Detail Information
Product Description
Detail Information
Place of Origin
China.Imported materials are available.
Brand Name
Reliance
Certification
CE,ISO...
Model Number
DR
Fin Tube Type:
Extrusion Fin Tube
Fins Type:
Solid & Serrated
Tube Material:
Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc...
Fin Material:
Aluminum
Tube Length:
No Limit
Fin Density:
13FPI Min
Highlight:

OD1" Aluminum Finned Tubes

,

13FPI Aluminum Finned Tubes

,

13FPI Extrusion fin tube

Product Description

extruded OD 1'' aluminum finned tubes with 10FPI fin densities segment fins​

Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.
Fins Type:
The fins are solid plain or serrated into 12,16 or 24 segments or as your design.
Detail:


General extrusion production capacityGeneral specifications of Extruded Fin Tubes

Extrusion Facility: 14 finning machines.
Daily capacity up to 15,000 meters.
Extruded fins type: solid and serrated.


Tube OD: 50.8mm(2'') max.
Tube Length: no limit.
Fin Height: 16 mm max.
Fin Thickness: generally 0.4mm
Fin Pitch: 1.5mm min.


Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.

Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.

Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).

Applications:

The common application fileds are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;


Specifications:

Extruded Bimetallic Finned Tube is combined with two different materials.


 ItemsGeneral MaterialsPopular ASTM Materials
Core Tube Material

Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc.
(Core tube with extremely thin wall materials can be applied.)

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
                              A789 S31803/S2205 etc...
3. Copper:UNS12200/UNS14200/UNS70600,
                 CuNi70/30,CuNi 90/10
4. Titanium: B338 Gr 2

Fins Material

1. Aluminum
2. Copper.

1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper.




All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

1

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 1/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10,

1 1/2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

Please email us for more information.



Advantages

  • One-stop manufacturer shop from core tube supply to fin tube machines
  • ISO 9001:2008 certified company
  • Experienced and dedicated management and qualfied manpower
  • Quickest response, competitive price, highese quality and shortest schedule
  • Tube stock availability for general grades of carbon steel and stainless steel
  • Technical support services for fin tube machines and replacement accessories

13FPI OD1" Aluminum Finned Tubes For Heat Exchangers Units 013FPI OD1" Aluminum Finned Tubes For Heat Exchangers Units 1
