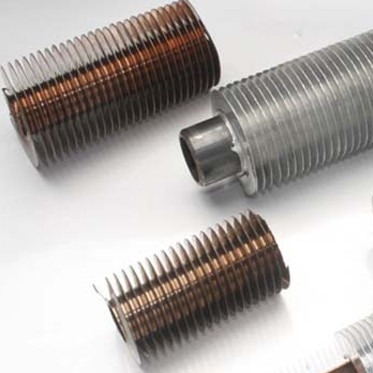

Inner Grooved Copper Low Fin Tube For Heat Exchanger And Air Cooler

MOQ:	N/A
Price:	N/A
Standard Packaging:	(1) Steel frame case sealed by plywoods with each end capped. (2) Solid fumigated wooden box with each end capped.
Delivery Period:	Ex-work within 1 month on receipt of order.
Payment Method:	T/T, L/C
Supply Capacity:	Daily capacity up to 3,000 Meters.

Detail Information

Product Description

Detail Information

Place of Origin

China.Imported materials are available.

Brand Name

Reliance

Certification

CE,ISO...

Model Number

Company Type:

Manufacturer,Importer & Exporter

Fin Tube Type:

DR-Extruded Fin Tube

Fins Type:

Solid

Origin:

China

Nearest Port:

Shanghai Port,China

Accessories:

Tube Support Box, Clamp & Spacer Box

Highlight:

Grooved Copper Low Fin Tube

Extruded Fin Tube for Air Cooler

H112 Extruded Fin Tube

Product Description

Inner Grooved Copper Low Fin Tube For Heat Exchanger And Air Cooler

Product Description

Material	1000 series:1050. 1070. 1100 2000 series:2011. 2014. 2017. 2018. 2024. 2025. 2117. 2218. 2618. 3000 series:3003. 3004. 4000 series:4032. 4043. 4543. 5000 series:5005. 5050. 5052. 5056. 5083.5086. 5154. 5205. 5252. 5254. 5356. 5357.5454. 5456. 5457. 5652. 5657. 6000 series:6005. 6011. 6053. 6351. 6061. 6101. 6151. 6201. 6261. 6262. 6063. 6463. 6066.6070 7000series:7001. 7005. 7072. 7075. 7076. 7175. 7178. 7079 8000 series:8011,8021,8079 etc
Standard	GB/T17748-2008
Certification	ISO9001,ISO14001, ISO9001:2000
Temper	T4,T5,T6,H111,H112
Surface treatment	chemical treatment: mill finish, anodizing, powder coated, sandblasting, electrophoresis etc Mechanical processing method: Mechanical drawing, mechanical polishing, sandblasting
Color	silvery white, black, golden, champagne, dark bronze or according to your requirement
Classify	shape:round/square/ special pipes extrusion way points:Seamless aluminum pipe and normal extrusion accuracy of the points:Ordinary aluminum pipe and precision tube, precision aluminum pipe generally need to rework after extrusion, such as cold drawn precision, rolling thickness:Ordinary aluminum pipe and thin wall aluminum tube performance:Corrosion resistance and light weight
Specification	Length:1-22m or as per request OD 4-20.0MM ID >=0.5MM Tolerance :+/-0.01mm

Mechanical property

Alloy No.	Temper
A1050,A1060, A1070,A1100	O,H12,H22,H14,H16,H18, H24,H26,etc
3A21,A3003,A3105,A3004	O,H14,H18,H24,etc
A5052 ,A5005,A5083,A5754	O,H18,H24,H32,H34,H111,H112 ,etc
A6061,A6082,A6063	T4,T6, T651,etc
A8011	O,H12,H22,H14,H16,H18,H24,H26, etc

Composition Of Aluminum Alloy

Alloy	Si	Mg	Fe	Cu	Mn	Zn	Cr	Ti
1050	0.25	0.05	<0.05	<0.05	<0.05	<0.05	-	<0.03
3003	0.6	-	0.7	0.05-0.20	1.0-1.5	0.10	-	-
5052	0.25	2.2-2.8	0.4	0.1	0.1	0.10	0.15-0.35	-
5083	0.4	4.0-4.9	0.4	0.1	0.4-1.0	0.25	0.05-0.25	0.15
6005	0.6-0.9	0.4-0.6	<0.35	<0.1	<0.1	<0.1	<0.1	<0.1
6061	0.4-0.8	0.8-1.2	<0.70	0.15-0.4	<0.15	<0.25	0.04-0.35	<0.05
6063	0.2-0.6	0.45-0.9	<0.35	<0.1	<0.1	<0.1	<0.1	<0.1
6082	0.7-1.3	0.6-1.2	<0.50	<0.1	0.4-1.0	<0.2	<0.25	<0.10

Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.

Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.

Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).

Applications for industrial Aluminum Alloy Tube/Pipe:
1) Micro-motors
2) Cylinder machines without wearing sleeve
3) Pneumatic cylinder
4) Heat transfer equipment
5) Construction industry

Specifications:

This Type of Bimetallic Finned Tube is Extruded with Single One material.

Items	General Materials	Popular ASTM Materials
Material	1. Aluminum 2. Copper.	1. Aluminum(Alu.1100,Alu.1060,Alu.6063) 2. Copper.

All dimensions are in Inches and specification upon your requests.
Tube OD	Fin Height	Fin Thickness	Fins per Pitch(Density)
5/8	3/8,1/2	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10, 11, 12
3/4	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10, 11, 12
1	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10, 11
1 1/4	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10,
1 1/2	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10, 11
1 3/4	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10
2	3/8,1/2,5/8	.015/.016/ .020	4, 5, 6, 7, 8, 9, 10
Please email us for more information.

Competitive Advantage:

We have more than 10,000 square meters workshop, including 10 extrusion finning machines, daily extrusion capacity up to 3,000 Meters.
The extrusion finning machines are designed and assembled by ourselves and we can offer you finning machines, extrusion muff sleeves and all accessories (extrusion finning disks) etc...
DR-extruded bimetallic fin tubes maximum operating temperature: 300 degree. The transfer coefficient remains steady.
DR-extruded bimetallic fin tubes have stronger fins than other mechanical fins, like L, LL, KL, and G, so it is much easier to clean.
In application of high stress and corrosive condiction, DR-extruded bimetallic fin tubes provides an excellent technical and economical savings in comparsion to a costlier single alloy tube, as the use of costlier material is reduced to the min.
