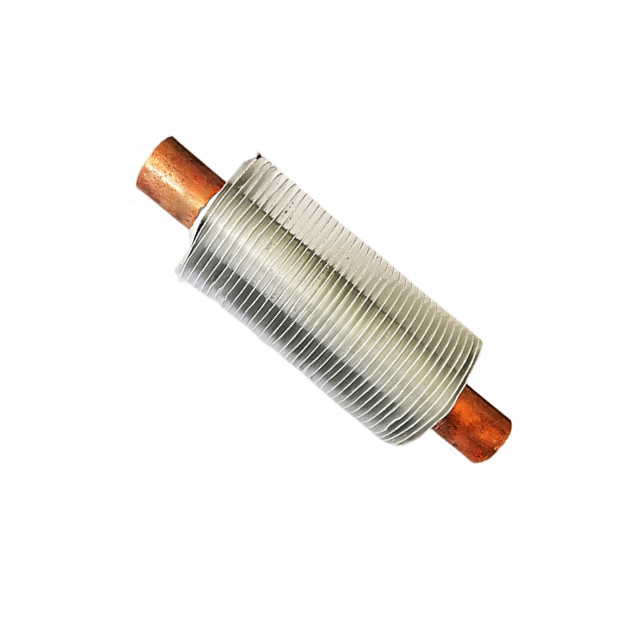

Aluminium Heat Exchange Finned Tube Energy Saving 16mm Height

Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number DR
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Steel frame case sealed by plywoods with each end capped. (2) Solid fumigated wooden box with each end capped.
Delivery Time Ex-work within 1 month on receipt of order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 15,000 Meters.
Product Details
Company Type Manufacturer,Importer & Exporter Fin Tube Type Extruded Fin Tube , Extrusion Finned Tube
Tube Material Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc... Fin Material Aluminum, Copper And Steel
Fin Tube Length No Limit Fin Height 16mm Max.
Accessories Tube Support Box, Clamp & Spacer Box Packing Wooden Box / Steel Frame Steel Case
High Light

Extruded Finned Tube 16mm height

,

Aluminium Heat Exchange Finned Tube

,

Aluminium Finned Tube Energy Saving

Leave a Message
Product Description

Energy Saving Aluminium Heat Exchange Finned Tube


With an aim to increase the heat exchanging efficiency, It's usually to extend the surface area (or internal surface area) by adding fins onto a tube, which, through this manufacturing process, would greatly improve and upgrade the heat transferring efficiency of heating tube, it's called Finned Tube or Fin Tubes.



♦ Welded finned tubes

♦ Extruded finned tubes

♦ Welded helical solid finned tubes

♦ Welded serrated finned tubes

♦ Welded helical serrated finned tubes

Detail:

General extrusion production capacityGeneral specifications of DR Type-Extruded Fin Tubes

Extrusion Facility: 14 finning machines.
Daily capacity up to 15,000 meters.
Extruded fins type: solid and serrated.



Tube OD      : 50.8mm(2'') max.
Tube Length : no limit
Fin Height     : 16 mm max.
Fin Thk          : 0.4mm
Fin Pitch         : 1.5mm min.


Description:
Manufacturing Process
 A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.

Fins Type:
Solid  fins & Serrated fins

Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).


Specifications:

Extruded Bimetallic Finned Tube is combined with two different materials.



 ItemsGeneral MaterialsPopular ASTM Materials
Core Tube Material

Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc.
(Core tube with extremely thin wall materials can be applied.)

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
                              A789 S31803/S2205 etc...
3. Copper:UNS12200/UNS14200/UNS70600,
                 CuNi70/30,CuNi 90/10
4. Titanium: B338 Gr 2

Fins Material

1. Aluminum
2. Copper.

1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper.




All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

1

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 1/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10,

1 1/2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

Please email us for more information.
