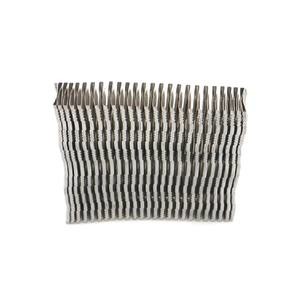

High Copper Radiator Extruded Finned Tubes With 10.5mm Fin Height
Place of Origin | China.Imported materials are available. |
---|---|
Brand Name | Reliance |
Certification | CE,ISO... |
Model Number | DR |
Minimum Order Quantity | N/A |
Price | N/A |
Packaging Details | (1) Steel frame case sealed by plywoods with each end capped. (2) Solid fumigated wooden box with each end capped. |
Delivery Time | Ex-work within 1 month on receipt of order. |
Payment Terms | T/T, L/C |
Supply Ability | Daily capacity up to 3,000 Meters. |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCompany Type | Manufacturer,Importer & Exporter | Fin Tube Type | DR-Extruded Fin Tube |
---|---|---|---|
Fins Type | Solid | Recent Buyer | From Singapore In Feb. 2015 |
Origin | China | Nearest Port | Shanghai Port,China |
Accessories | Tube Support Box, Clamp & Spacer Box | ||
High Light | High Copper Radiator Extruded Finned Tubes,10.5mm Extruded Finned Tubes,Carbon Steel Extruded Finned Tubes |
Extruded High Copper Radiator Finned Tubes With 10.5mm Fin Height
Detail:
Items
|
General Materials
|
Popular ASTM Materials
|
|
Core Tube Material
|
Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc.
|
1. Carbon Steel: A179, A192,SA210 GrA1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,A789 S31803/S2205 etc.. 3.Copper:UNS12200/UNS14200/UNS70600,CuNi70/30,CuNi 90/10 4. Titanium: B338 Gr 2 |
|
Fins Material
|
1. Aluminum
2. Copper. |
1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper. |
Description:
Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.
Fins Type:
The fins are solid plain or serrated into 12,16 or 24 segments or as your design.
Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.
Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.
Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).
Applications:
The common application fileds are:
- Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
- High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
- The petroleum, chemical and petrochemical industries;
- The food processing and refrigeration industries;
- Natural gas treatment;
Specifications:
Extruded Bimetallic Finned Tube is combined with two different materials.
Items | General Materials | Popular ASTM Materials |
Core Tube Material |
Any metallic materials, as carbon steel, low-alloy steel, |
1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B |
Fins Material |
1. Aluminum Alloy |
1. Aluminum(Alu.1100,Alu.1060,Alu.6063) |
All dimensions are in Inches and specification upon your requests. |
|||
Tube OD |
Fin Height |
Fin Thickness |
Fins per Pitch(Density) |
5/8 |
3/8,1/2 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11, 12 |
3/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11, 12 |
1 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11 |
1 1/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, |
1 1/2 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11 |
1 3/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10 |
2 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10 |
Please email us for more information. |
Competitive Advantage:
- We have more than 10,000 square meters workshop, including 10 extrusion finning machines, daily extrusion capacity up to 3,000 Meters.
- The extrusion finning machines are designed and assembled by ourselves and we can offer you finning machines, extrusion muff sleeves and all accessories (extrusion finning disks) etc...
- DR-extruded bimetallic fin tubes maximum operating temperature: 300 degree. The transfer coefficient remains steady.
- DR-extruded bimetallic fin tubes have stronger fins than other mechanical fins, like L, LL, KL, and G, so it is much easier to clean.
- In application of high stress and corrosive condiction, DR-extruded bimetallic fin tubes provides an excellent technical and economical savings in comparsion to a costlier single alloy tube, as the use of costlier material is reduced to the min.
