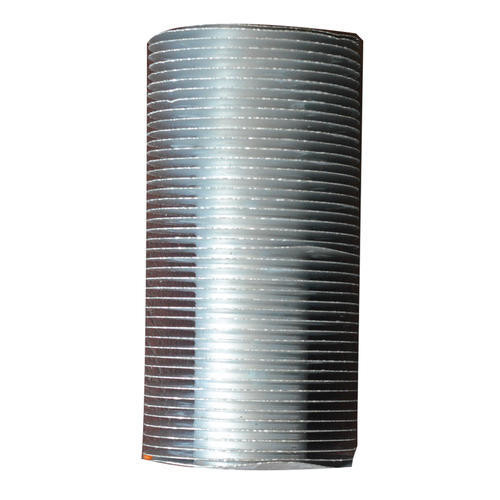

Radiator Alloy Steel Extruded Fin Tube 16mmFin Height ISO

Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number DR
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Steel frame case sealed by plywoods with each end capped. (2) Solid fumigated wooden box with each end capped.
Delivery Time Ex-work within 1 month on receipt of order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 15,000 Meters.

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Company Type Manufacturer,Importer & Exporter Fin Tube Type Extruded Fin Tube , Extrusion Finned Tube
Tube Material Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc... Fin Material Aluminum, Copper And Steel
Fin Tube Length No Limit Fin Height 16mm Max.
Accessories Tube Support Box, Clamp & Spacer Box Packing Wooden Box / Steel Frame Steel Case
High Light

Alloy Steel Extruded Fin Tube

,

Radiator Extruded Fin Tube

,

16mm Height Extruded Fin Tube

Leave a Message
Product Description

Extruded high copper radiator finned tubes with 10.5mm fin height

Applications:
The common application fileds are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;

Detail:

General extrusion production capacityGeneral specifications of DR Type-Extruded Fin Tubes

Extrusion Facility: 14 finning machines.
Daily capacity up to 15,000 meters.
Extruded fins type: solid and serrated.



Tube OD      : 50.8mm(2'') max.
Tube Length : no limit
Fin Height     : 16 mm max.
Fin Thk          : 0.4mm
Fin Pitch         : 1.5mm min.


Description:
Manufacturing Process
 A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.

Fins Type:
Solid  fins & Serrated fins

Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).


Specifications:

Extruded Bimetallic Finned Tube is combined with two different materials.



 ItemsGeneral MaterialsPopular ASTM Materials
Core Tube Material

Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc.
(Core tube with extremely thin wall materials can be applied.)

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
                              A789 S31803/S2205 etc...
3. Copper:UNS12200/UNS14200/UNS70600,
                 CuNi70/30,CuNi 90/10
4. Titanium: B338 Gr 2

Fins Material

1. Aluminum
2. Copper.

1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper.




All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

1

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 1/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10,

1 1/2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

Please email us for more information.
