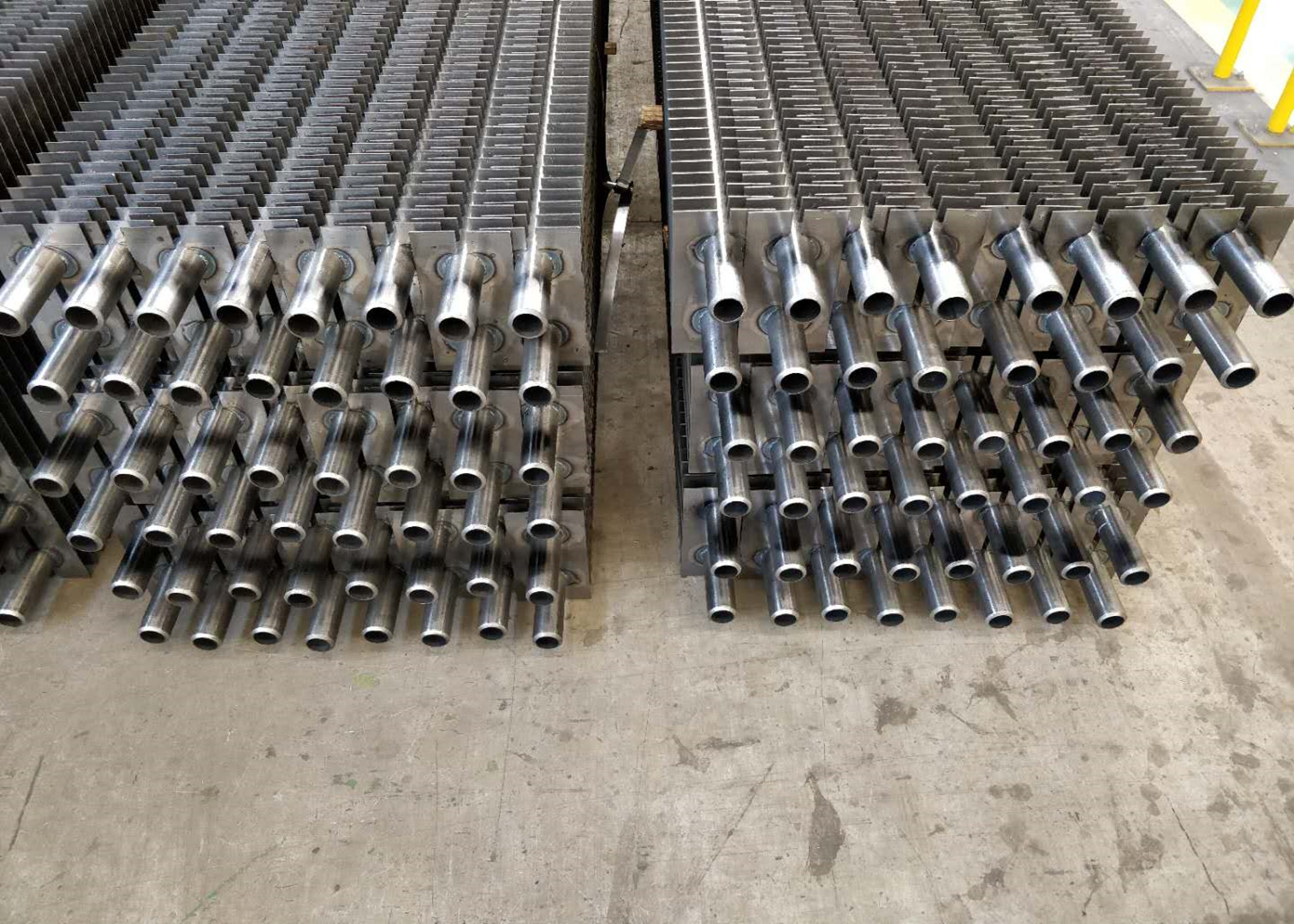

Boiler H Square Fin Tube 3.5mm Alloy Energy Saving Component Parts

  • Boiler H Square Fin Tube 3.5mm Alloy Energy Saving Component Parts
Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number HH FIN
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Waterproof steel frame bundle with each end capped; (2) Steel frame case sealed by plywoods with each end capped.
Delivery Time Ex-work within 5 weeks after order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 3,000 Meters

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Carbon,alloy,stainless,copper Fin Tube Type H Fin Or HH Fin
Fins Shape Square Or Rectangular Type Fin Tube
Nearest Port Shanghai Port Application Heater Parts, Heat Transfer
High Light

Boiler H Square Fin Tube

,

Square 3.5mm Fin Tube

,

Alloy Square Fin Tube
Leave a Message
Product Description

Boiler Energy Saving Component Parts H Square Fin Tube With ASME Standard​


Steel H
Pairs of parallel shaped steel fins are resistance welded to the single pressure tubes (pipes) surface under very carefully controlled conditions.The purpose build welding machine ensures very precise indexing along the entire length of the tubes (pipes) and exact parallel attachment.


Double H
A development of the single tubes (pipes) version, the 'Double H' design has the steel fins welded onto two tubes at the same time. For applications with cleaner gases the use of 'Double H' can reduce the number of supports required due to its inherent stiffness.



DESCRIPTION TUBE MATERIAL FIN MATERIAL TUBE SIZE



Extruded ,L-fin,G(Embedded) Aluminum Fin tube


 All Kind of Material can be applied Aluminum A1050,
A6061, A1100,
A1050,A1060,Copper C1100,C1220
12.70~50.8
High frequency Welded Finned
Tube H,HH		 Carbon,Stainless ,Alloy Carbon,Stainless ,Alloy
12.7~219
Integral Copper&Copper Alloy
High Finned Tube		 C12200,C11000,C70600 C12200,C11000,
C70600		 15.88~22.23
Oval Finned Tube,STUD FIN TUBE Carbon ,Stainless ,Alloy Steel Tube Carbon,Alloy.stainless Steel Tube
All SIZE
Available
Low Fin Tube Carbon Steel,Stainless Steel,
Titanium,copper,brass,nickel
Alloy,etc.
---
9.52~40
Corrugated Tube All Kind of Material ---





Description:



General H type Fin production capacity

 General specifications of H type fin tubes

Production Facility: 6 finning machines;
Daily capacity up to 20 tons;

Tube OD: 73 mm max.
Tube Length: 18 meters max.
Fin Thickness: 1.5mm ~3.5mm
Fin Pitch: 10mm Min.


Specifications:


Items General Materials Popular ASTM /ASME Materials
Core Tube Material

 Carbon Steel
 Alloy Steel
 Heat  Resistant Steel,
 Stainless Steel

1. Carbon Steel: A106 / A179 /A192 / A210 etc...
2. Stainless Steel: TP304/304L,TP316/TP316L, TP347 etc...
3. Alloy Steel: T11,T22

Studs
Material

 Carbon Steel
 Stainless Steel

1. Carbon Steel
2. Stainless Steel:
     TP409/410,TP304/304L,TP316/TP316L etc...




Dimensions Data Sheet We're Supplying.

General Descriptions of H-fins

Popular Specifications we make

Tube OD(mm)

25mm to 73mm

Tube Wall thickness(mm)

2.5mm Min.

Tube length(mm)

18000mm Max.

Fin thickness(mm)

1.5mm to 3.5mm

Fin pitch(mm)

10mm Min.

Please email us for more information.



Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 6 H-FIN TYPE finning machines, daily extrusion capacity up to 20 tons.
  2. The Square or Rectangular Fins H-Finned Tubes are the preferred tube choice for high pressure boilers.
  3. Fins can be manufactured by stamping process in almost any shape and size.
  4. In-line fin and tube spacing allows for cleaning with excellent choice in sooting or fouling atmospheres.
  5. Fin height and spacing are limited only by heat transfer considerations.
  6. Fins and tubing can be similar or dissimilar metals.
