Spiral Square ERW Fin Tube Longitudinal Pipes R410A Metal

Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number H FIN
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Waterproof steel frame bundle with each end capped; (2) Steel frame case sealed by plywoods with each end capped.
Delivery Time Ex-work within 5 weeks after order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 3,000 Meters
Product Details
Refrigerant R410A Structure Material Metal Material
Fins Shape Square Or Rectangular Origina China
Nearest Port Shanghai Port Tube Material Aluminum Stainless Steel
High Light

Square Longitudinal Fin Tube

,

Spiral ERW Fin Tube

,

R410A Metal Fin Tube

Leave a Message
Product Description

Spiral Square Longitudinal ERW Fin Tubings Fintubes Fin Pipes Finned Pipes



The high frequency fin tube produced by our company can be applied to boiler economizer, air preheater, chemical crystallizer, etc. The main products: high-frequency spiral resistance welding fin tube, stainless steel fin tube, double metal steel aluminum compound pipe, copper aluminum compound tube, cold and hot coil heat exchanger. Products are widely used in petrochemical, electric power, metallurgy, building materials, coating, boiler, heat carrier air conditioning, refrigeration heat conduction oil furnace, pressure vessel, dryer, intelligent greenhouse, livestock farming, fin tube economizer and air preheater, etc.



Manufactured in the same way as the L fin-type expect that the fin foot is overlapped to completely enclose the base tube thereby giving excellent corrosion resistance. This type of tube is often used as an alternative to the more expensive extruded type fin in corrosive environments



H fin tube known as square fin tube, There are two type of H fin tubes, one type with single tube, normal called square fin tube, the other with Double tube, normal called rectangular fin tubes. and also manufactured as per customers requirements. Due to rectangular shapes, which can offer large surface area compared to the Spiral Finned tubes. Due to larger surface area available, these finned tubes are used mostly in Air Heating application to reduce the overall size of the equipment.

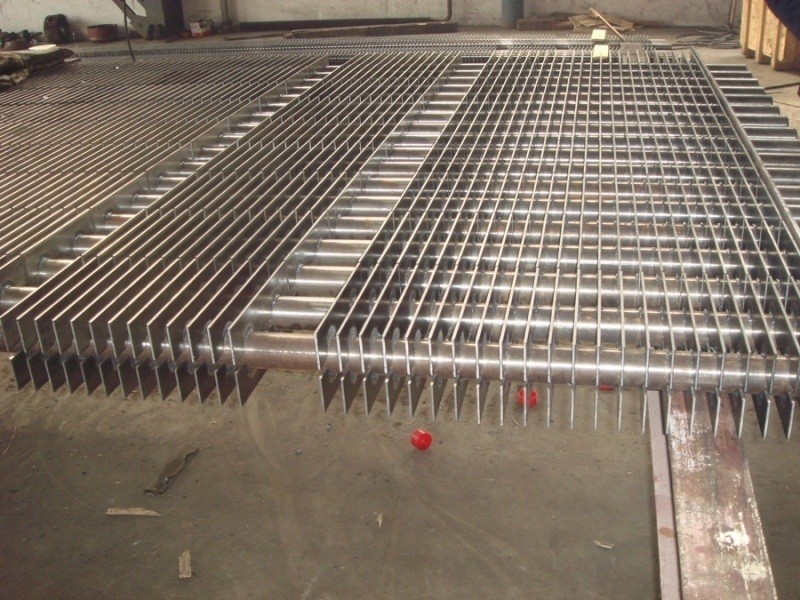

H fin tube is a kind of boiler parts, to have two steel circular symmetry to be welded on fluorescent tubes to form fins positive shap much like letter "H", so called H-fin tube. H-economizer widely used in utility boilers, industrial boilers, marine power, such as the tail of heat exchanger components.




Description:

General H type Fin production capacity

General specifications of H type fin tubes

Production Facility: 6 finning machines;
Daily capacity up to 20 tons;

Tube OD: 73 mm max.
Tube Length: 18 meters max.
Fin Thickness: 1.5mm ~3.5mm
Fin Pitch: 10mm Min.



More Tubes Materials

ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes

ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service

ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes



Manufacturing Process
Square or Rectangular H Fins are welded on a steel base tube. We call it H Fin Type Tubing.


Acceptance Criteria
Approved drawing and the delivery conditions (TDC) of clients.

Additional Services
Tube swaging, elbows, bends(90° / 180° or as per client's design).

Quality Tests
The Square or Rectangualr H Finned Tube quality is assured by hydrostatic or pneumatic tests, eddy current tests and tensile tests in order to verify the mechanical bonding between inner tubes and outer fins.

Surface Coating
Outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form.

Delivery Condition: Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of Square or Rectangualr Fin Tube.

Applications:

  1. Economizers ,
  2. Heat exchangers
  3. Marine boilers

Specifications:


Items General Materials Popular ASTM /ASME Materials
Core Tube Material

 Carbon Steel
 Alloy Steel
 Heat  Resistant Steel,
 Stainless Steel

1. Carbon Steel: A106 / A179 /A192 / A210 etc...
2. Stainless Steel: TP304/304L,TP316/TP316L, TP347 etc...
3. Alloy Steel: P5,T5,P9,T9,T11,T22

Studs
Material

 Carbon Steel
 Stainless Steel

1. Carbon Steel
2. Stainless Steel:
     TP409/410,TP304/304L,TP316/TP316L etc...




Dimensions Data Sheet We're Supplying.

General Descriptions of H-fins

Popular Specifications we make

Tube OD(mm)

25mm to 73mm

Tube Wall thickness(mm)

2.5mm Min.

Tube length(mm)

18000mm Max.

Fin thickness(mm)

1.5mm to 3.5mm

Fin pitch(mm)

10mm Min.

Please email us for more information.



Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 6 H-FIN TYPE finning machines, daily extrusion capacity up to 20 tons.
  2. The Square or Rectangular Fins H-Finned Tubes are the preferred tube choice for high pressure boilers.
  3. Fins can be manufactured by stamping process in almost any shape and size.
  4. In-line fin and tube spacing allows for cleaning with excellent choice in sooting or fouling atmospheres.
  5. Fin height and spacing are limited only by heat transfer considerations.
  6. Fins and tubing can be similar or dissimilar metals.
