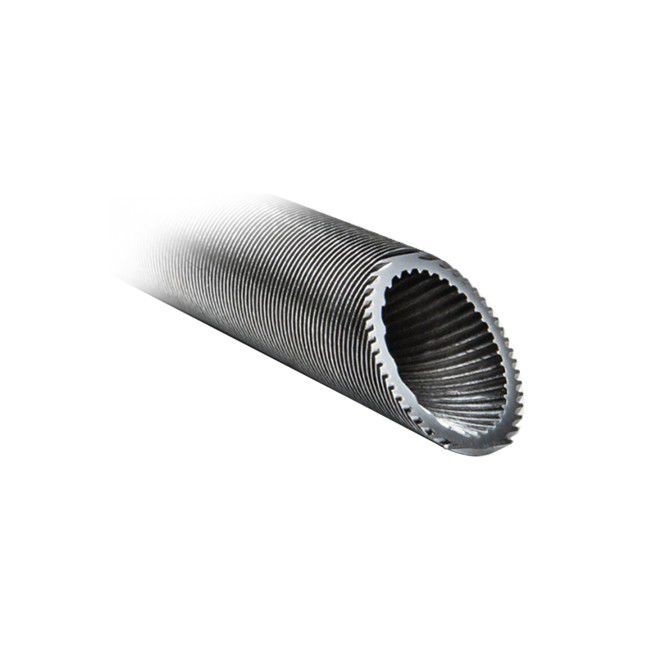

Copper Low Finned Tubes 2mm Heat Exchanger Carbon Steel

  • Copper Low Finned Tubes 2mm Heat Exchanger Carbon Steel
Place of Origin China.
Brand Name Reliance
Certification CE,ISO...
Model Number Low Finned Tubes
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) All integral low fin tubes are packed in hexagonal bundles. (2) Steel frame case sealed by plywoods; 3: Solid fumigated seaworthy wooden box.
Delivery Time Ex-work with 1 month after order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 5,000 Meters

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Company Type Manufacturer, Importer & Exporter Fin Thickness 0.2-2mm
Fins Type Integral, N Type Tube Material Carbon Steel,Stainless Steel, Brass,copper Etc...
Acceptance Ceritia WOLVERINE, HPT, GEWA-K & GEWA-KS Fin Thickness ~0.33mm
Tube Length No Limit Treatment Heat Treatment If Needed
Test Hydro Test And Pneumatic Test Application Heat Transfer
High Light

Copper Low Finned Tubes

,

low 2mm Finned Tubes

,

Carbon Steel low Finned Tubes
Leave a Message
Product Description

Extruded Heat Exchanger Extruded Copper Low Finned Tubes



Low-finned tubes are a reliable solution for controlling the temperature of gases and liquids, or for evaporating and condensing refrigerants. Thanks to their larger heat transfer surface area, they offer considerable potential to save in terms of materials and fill volumes. The wide range of dimensions offered by us makes these products perfect for a broad scope of applications in the refrigeration and air conditioning industry, for oil/gas coolers in machinery and plant engineering, and for intermediate vapor superheaters in process engineering.





Your benefits at a glance

  • Reliable solutions for diverse application areas
  • Larger heat transfer surface compared to smooth tubes
  • Savings in material thanks to reduced tube length
  • Fill level reductions on account of increased efficiency



Titanium welded pipe / tubing

ASTM B338,
ASTM B862

Gr1 GR2 GR7 GR12

OD (10.3~914) = (1/8~36)Inch
WT (0.5~30.96) = (0.049~1.219) Inch Length

Titanium seamless pipe / tubing

ASTM B338,
ASTM B337,
ASTM B861

GR1 GR2 GR3 GR5 GR6 GR7 GR9 GR12 GR16 GR17 etc.

OD (1.5~420)
WT(0.3~16 )
Length 18000 mm


Quick Detail:

General Low Fin Tubes Production Capacity  Specifications of Low Fin Tubes('N' Fins)

Finning Facility: 10 finning machines;
Daily capacity up to 3000 meters;		 Tube OD: 12.7 mm~25.4mm
Tube Length: No Limit
Fin Height: 1.2 mm ~2.77mm
Fin Thickness: appr. 0.3mm
Fin Pitch: 30 FPI /28 FPI/ 26 FPI/ 36 FPI /43 FPI



Description:
Manufacturing process: The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type.

Delivery of Low Fin Tubes
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius.

Quality Test:
The integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO            tests in order to verify design specifications.
 Acceptance ceritia:
 WOLVERINE  /  HPT  / GEWA-K & GEWA-KS

Delivery condition:
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish.
The desiccants are put into the each package for continental transportation.


Applications:
​The Integral Low Finned Tubes find the preference in the following industrial sectors:

  1. Heating systems
  2. Ventilation systems
  3. Refrigeration and climate control systems
  4. Mechanical engineering
  5. Automotive manufacturing
  6. Chemicals and pertrochemical and power plant technology


Specifications:

Copper Low Finned Tubes 2mm Heat Exchanger Carbon Steel 0

 Copper Low Finned Tubes 2mm Heat Exchanger Carbon Steel 1

Copper Low Finned Tubes 2mm Heat Exchanger Carbon Steel 2
