C12100 Aluminum Low Fin Tube Extruded Corrugated

Place of Origin China.Imported materials are available
Brand Name Reliance
Certification CE,ISO...
Model Number LF
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) All integral low fin tubes are packed in hexagonal bundles. (2) Steel frame case sealed by plywoods; 3: Solid fumigated seaworthy wooden box.
Delivery Time Normally Ex-work with 1 month after order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 5,000 Meters

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Company Type Manufacturer, Importer & Exporter Fin Tube Type Low Fin Tubes
Fins Type Integral, N Type Origin China
Nearest Port Shanghai Port, China Acceptance Ceritia WOLVERINE, HPT, GEWA-K & GEWA-KS
High Light

Aluminum Low Fin Tube

,

Extruded Low Fin Tube

,

Corrugated Low Fin Tube

Leave a Message
Product Description

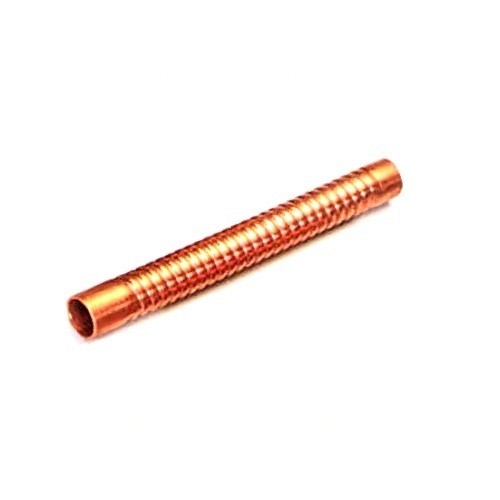

C12100 / C68700 Extruded Corrugated Aluminum Low Fin Tube

Properties of Low Fin Tubes or Integral Fin Tubes:-

  • Manufacturing Process:- Cold Rolling of Fin on the Base tube Itself.
  • Fin To Tube Bond:- NA f(fin is made from the base tube itself)
  • Heat Transfer Efficiency:- Good
  • Mechanical Resistance: – Good
  • Corrosion Protection: – Moderate
  • Temperature Range:- Up to Maximum 415 Deg C


ASTM B111:  Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock
Quick Detail:

 NoParticularsRange
1Base Tube MaterialStainless Steel, Carbon Steel, Alloy Steel, Titanium, Copper, Duplex Stainless Steel, Inconel etc. (all material in the theoretical limit)
2Base Tube Outside Diameter12.70 mm to 38.10 mm
3Base Tube Thickness2.11 mm And Above
4Base Tube Length500 mm Min To 15000 mm
5Fin DensityUp to 1023 FPM ( 26 FPI )
6Bare EndsAs per Client Requirement
7Manufacturing Capacity7,00,000 Meter Per Annum



Description:
Manufacturing process:
The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type.

Delivery of Low Fin Tubes
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius.

Quality Test:
The integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO            tests in order to verify design specifications.
 Acceptance ceritia:
 WOLVERINE  /  HPT  / GEWA-K & GEWA-KS

Delivery condition:
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish.
The desiccants are put into the each package for continental transportation.


Applications:
​The Integral Low Finned Tubes find the preference in the following industrial sectors:

  1. Heating systems
  2. Ventilation systems
  3. Refrigeration and climate control systems
  4. Mechanical engineering
  5. Automotive manufacturing
  6. Chemicals and pertrochemical and power plant technology


Specifications:
Tube and fins consist of same tube and materials as carbon steel , low-alloy steels , stainless steel , brass , copper , cooper-nickel alloys , aluminum bronze , nickel alloys , titanium etc...


Plain tube (mm)

Finned section dimensions (mm)

Ratio

De

D×t

Tp

dd

dr

di

η

mm

19×2

0.8

18.8

17

134

2.8

17.9

19×2

1

18.8

16.8

13.4

2.5

17.8

19×2

1.25

18.8

16.6

13

2.2

17.8

19×2

1.5

18.8

16.6

13

2

17.7

19×2

2

18.8

16.4

13

1.7

17.5

25×2.5

0.8

24.8

23

18.8

2.8

23.9

25×2.5

1

24.8

22.6

18.8

2.75

23.7

25×2.5

1.25

24.8

22.3

18

2.5

23.6

25×2.5

1.5

24.8

22.3

18

2.2

23.5

25×2.5

2

24.8

22

18

1.8

23.4

25×2.5

2.5

24.8

22

18

1.6

23.3

D------Outside diameter of plain end section
Dof----Diameter of top fins
Dr-----Root diameter of finned section
Di-----Inside diameter of finned section
T------Wall thickness of plain end section
Tp-----Fin pitch
De----Equivalent diameter of finned tube
L------Plain tube end length

Please email us for more information.



Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 10 finning machines, daily extrusion capacity up to 3,000 meters.
  2. The finning machines of Integral Low Fin Tubes are designed and assembled by ourselves and we can offer you finning machines and all accessories etc...
  3. The Integral Low Fins are rolled out of the tube surface to increase the tubes external surface area, without affecting any others dimension.
  4. Low Fins are very useful for tight condensers and exhibits high efficiency of heat transfer.
  5. Economical solutions of heat exchange problems of media with different heat conduction abilities or different current conditions.
  6. High chemical-, thermal- and mechanical resistance, suitable for rough operation conditions.

C12100 Aluminum Low Fin Tube Extruded Corrugated 0
