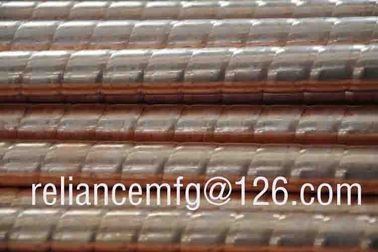

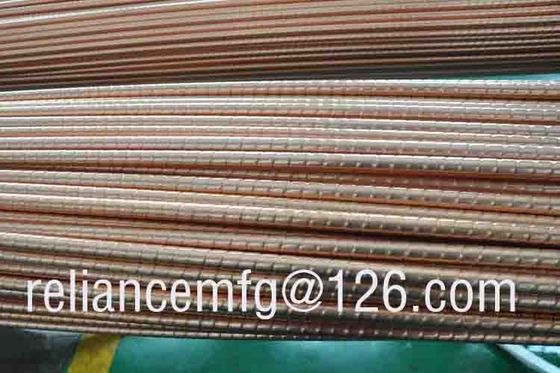

Extrusion Corrugated Seamless B111 C12200 Spiral Copper Low Fin Tube For Heat Exchanger
|Place of Origin||China.|
|Model Number||Corrugated tubes|
|Minimum Order Quantity||N/A|
|Packaging Details||(1) All integral low fin tubes are packed in hexagonal bundles. (2) Steel frame case sealed by plywoods; 3: Solid fumigated seaworthy wooden box.|
|Delivery Time||Ex-work with 1 month after order.|
|Payment Terms||T/T, L/C|
|Supply Ability||Daily capacity up to 5,000 Meters|
|Company Type||Manufacturer, Importer & Exporter||Fin Tube Type||Low Fin Tubes|
|Fins Type||Integral, N Type||Tube Material||Carbon Steel,Stainless Steel, Brass,copper Etc...|
|Acceptance Ceritia||WOLVERINE, HPT, GEWA-K & GEWA-KS||Fin Thickness||~0.33mm|
|Tube Length||No Limit||Treatment||Heat Treatment If Needed|
|Test||Hydro Test And Pneumatic Test|
low Finned tube,
low finned tubes
Extrusion corrugated seamless B111 C12200 spiral heat exchanger copper fin tube
Titanium welded pipe / tubing
Gr1 GR2 GR7 GR12
OD (10.3~914) = (1/8~36)Inch
Titanium seamless pipe / tubing
GR1 GR2 GR3 GR5 GR6 GR7 GR9 GR12 GR16 GR17 etc.
|General Low Fin Tubes Production Capacity||Specifications of Low Fin Tubes('N' Fins)|
Finning Facility: 10 finning machines;
Daily capacity up to 3000 meters;
|Tube OD: 12.7 mm~25.4mm
Tube Length: No Limit
Fin Height: 1.2 mm ~2.77mm
Fin Thickness: appr. 0.3mm
Fin Pitch: 30 FPI /28 FPI/ 26 FPI/ 36 FPI /43 FPI
Manufacturing process: The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type.
Delivery of Low Fin Tubes
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius.
The integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO tests in order to verify design specifications.
WOLVERINE / HPT / GEWA-K & GEWA-KS
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish.
The desiccants are put into the each package for continental transportation.
The Integral Low Finned Tubes find the preference in the following industrial sectors:
- Heating systems
- Ventilation systems
- Refrigeration and climate control systems
- Mechanical engineering
- Automotive manufacturing
- Chemicals and pertrochemical and power plant technology
