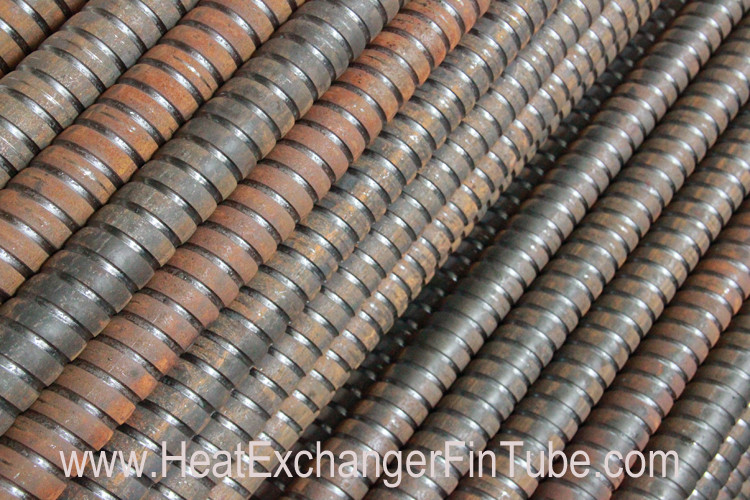

A179 seamless carbon steel corrugated slot heat exchangers tube​

Place of Origin China.Imported materials are available
Brand Name Reliance
Certification CE,ISO...
Model Number Spiral tube
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) All integral low fin tubes are packed in hexagonal bundles. (2) Steel frame case sealed by plywoods; 3: Solid fumigated seaworthy wooden box.
Delivery Time Ex-work with 5 weeks after order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 5,000 meters
Product Details
Company Type Manufacturer, Importer & Exporter Fin Tube Type Spiral Tube
Tube Material CS/SS,copper, Brass Ect... Fin Material Formed Out Of Same Tube.
Acceptance Ceritia WOLVERINE, HPT, GEWA-K & GEWA-KS Process Extrusion
Tube Length No Limit Slot Depth As Per Client's Requirement
Slot Pitch As Per Client's Requirement Tube Wall Thickness No Limit
High Light

low Finned tube

,

low finned tubes

Leave a Message
Product Description


A179 seamless carbon steel corrugated slot heat exchangers tube​

Manufacturing process:

The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube.

Popular Tube Materials:
ASTM A106 / 106M : Seamless Carbon Steel Pipe for High-Temperature Service
ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes

Delivery Range of Low Fin Tubes
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius.

Quality Test:
The integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO            tests in order to verify design specifications.

Acceptance Ceritia:
 WOLVERINE  /  HPT  / GEWA-K & GEWA-KS

Delivery Condition:
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish.
The desiccants are put into the each package for continental transportation.


Applications:
​The Integral Low Finned Tubes find the preference in the following industrial sectors:

  1. Heating systems
  2. Ventilation systems
  3. Refrigeration and climate control systems
  4. Mechanical engineering
  5. Automotive manufacturing
  6. Chemicals and pertrochemical and power plant technology


Specifications:
Tube and fins consist of same tube and materials as carbon steel , low-alloy steels , stainless steel , brass , copper , cooper-nickel alloys , aluminum bronze , nickel alloys , titanium etc...


Plain tube (mm)

Finned section dimensions (mm)

Ratio

De

D×t

Tp

dd

dr

di

η

mm

19×2

0.8

18.8

17

134

2.8

17.9

19×2

1

18.8

16.8

13.4

2.5

17.8

19×2

1.25

18.8

16.6

13

2.2

17.8

19×2

1.5

18.8

16.6

13

2

17.7

19×2

2

18.8

16.4

13

1.7

17.5

25×2.5

0.8

24.8

23

18.8

2.8

23.9

25×2.5

1

24.8

22.6

18.8

2.75

23.7

25×2.5

1.25

24.8

22.3

18

2.5

23.6

25×2.5

1.5

24.8

22.3

18

2.2

23.5

25×2.5

2

24.8

22

18

1.8

23.4

25×2.5

2.5

24.8

22

18

1.6

23.3

D------Outside diameter of plain end section
Dof----Diameter of top fins
Dr-----Root diameter of finned section
Di-----Inside diameter of finned section
T------Wall thickness of plain end section
Tp-----Fin pitch
De----Equivalent diameter of finned tube
L------Plain tube end length

Please email us for more information.


 A179 seamless carbon steel corrugated slot heat exchangers tube​ 0
Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 10 finning machines, daily extrusion capacity up to 3,000 meters.
  2. The finning machines of Integral Low Fin Tubes are designed and assembled by ourselves and we can offer you finning machines and all accessories etc...
  3. The Integral Low Fins are rolled out of the tube surface to increase the tubes external surface area, without affecting any others dimension.
  4. Low Fins are very useful for tight condensers and exhibits high efficiency of heat transfer.
  5. Economical solutions of heat exchange problems of media with different heat conduction abilities or different current conditions.
  6. High chemical-, thermal- and mechanical resistance, suitable for rough operation conditions.
