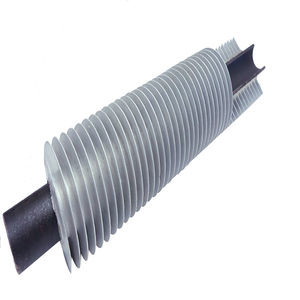

Copper Extruded Aluminum Fin Tube For Heat Exchanger 13FPI Min

  • Copper Extruded Aluminum Fin Tube For Heat Exchanger 13FPI Min
Place of Origin China.Imported materials are available.
Brand Name Reliance
Certification CE,ISO...
Model Number DR
Minimum Order Quantity N/A
Price N/A
Packaging Details (1) Steel frame case sealed by plywoods with each end capped. (2) Solid fumigated wooden box with each end capped.
Delivery Time Ex-work within 1 month on receipt of order.
Payment Terms T/T, L/C
Supply Ability Daily capacity up to 3,000 Meters.

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fin Tube Type Extrusion Fin Tube Fins Type Solid & Serrated
Tube Material Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc... Fin Material Aluminum
Tube Length No Limit Fin Density 13FPI Min
High Light

Copper Extruded Aluminum Fin Tube

,

Extruded Fin Tube For Heat Exchanger

,

Extruded Fin Tube 13 FPI min
Leave a Message
Product Description

Copper Tube Extruded Aluminum Fin Tube For Heat Exchanger


Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.
Fins Type:
The fins are solid plain or serrated into 12,16 or 24 segments or as your design.
Detail:

Condition New
Standard ASME SA213/ASTM A213,ASME SA106/ASTM A106,ASME SA179/ASTM A179,ASTM B111
Material carbon steel, stainless steel, copper alloy,Aluminum steel;other materials as customer request
Fin produce type 1.Extruded fin tube
2.Serrated fin tube
3.L Type fin tube
4.G Type fin tube
5.LL Type fin tube
6.H Type fin tube
7.Sprial fin tube
8.High-frequency welding
Tube OD 25mm~165mm(as per as customer request)
Fin pitch 1~50mm(as per as customer request)
Fin height 5~50mm(as per as customer request)
Fin thickness 0.5~45mm(as per as customer request)
Application Heat exchanger,Air Cooler,Charge Air Chiller, Condenser,Evaporator, Fluid Cooler, Gas Cooler,Oil Cooler, Radiator, Refrigeration etc...


Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.

Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.

Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).

Applications:

The common application fileds are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;


Specifications:

Extruded Bimetallic Finned Tube is combined with two different materials.


 Items General Materials Popular ASTM Materials
Core Tube Material

Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc.
(Core tube with extremely thin wall materials can be applied.)

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
                              A789 S31803/S2205 etc...
3. Copper:UNS12200/UNS14200/UNS70600,
                 CuNi70/30,CuNi 90/10
4. Titanium: B338 Gr 2
Fins Material

1. Aluminum
2. Copper.

1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper.




All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

1

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 1/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10,

1 1/2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

Please email us for more information.



Advantages

  • One-stop manufacturer shop from core tube supply to fin tube machines
  • ISO 9001:2008 certified company
  • Experienced and dedicated management and qualfied manpower
  • Quickest response, competitive price, highese quality and shortest schedule
  • Tube stock availability for general grades of carbon steel and stainless steel
  • Technical support services for fin tube machines and replacement accessories

Copper Extruded Aluminum Fin Tube For Heat Exchanger 13FPI Min 0Copper Extruded Aluminum Fin Tube For Heat Exchanger 13FPI Min 1
